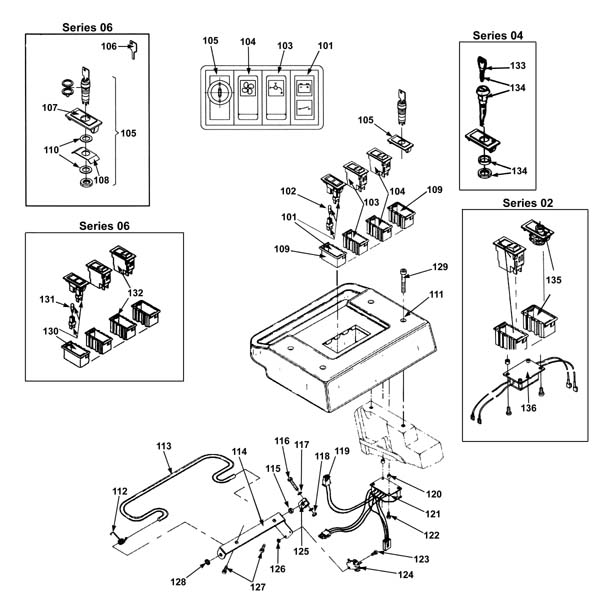

Control Board Assembly - 192-0001 |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
| 101 |
192-1931 |
Battery indicator (OBSOLETE) |
$177.57 |
1 |
|
| 102 |
192-4734 |
Led 24 volt (OBSOLETE) |
$41.43 |
4 |
|
| 103 |
192-6104 |
Rocker switch (OBSOLETE) |
$102.06 |
1 |
|
| 104 |
192-6105 |
Rocker switch (OBSOLETE) |
$100.14 |
1 |
Vac motor |
| 105 |
192-4665 |
Key switch |
$241.23 |
1 |
Solution |
| 106 |
192-1064 |
Side cut key |
$62.82 |
1 |
Series 06 |
| 107 |
192-1370 |
Clamping plate |
$21.33 |
1 |
Series 06 |
| 108 |
192-1371 |
Clamp bracket (OBSOLETE) |
$5.17 |
1 |
Series 06 |
| 109 |
192-1372 |
End frame |
$6.88 |
2 |
|
| 110 |
192-1373 |
Gasket (OBSOLETE) |
$2.00 |
2 |
Series 06 |
| 111 |
192-1374 |
Housing (OBSOLETE) |
$349.91 |
1 |
|
| 112 |
192-1375 |
Torsion spring (OBSOLETE) |
$10.06 |
1 |
|
| 113 |
192-1376 |
Connecting rod (OBSOLETE) |
$29.66 |
1 |
|
| 114 |
192-1377 |
Bracket (OBSOLETE) |
$21.34 |
1 |
|
| 115 |
192-1292 |
Bushing |
$2.82 |
1 |
|
| 116 |
192-1003 |
Screw M5 x 35mm raised cheese head torx |
$2.33 |
1 |
|
| 117 |
192-0880 |
Washer M5 |
$2.33 |
2 |
|
| 118 |
192-0383 |
Nut M5 hex |
$2.91 |
1 |
|
| 119 |
192-1379 |
Clip housing (OBSOLETE) |
$3.51 |
1 |
|
| 120 |
192-1380 |
Bushing (OBSOLETE) |
$5.51 |
2 |
|
| 121 |
N/A |
Not available |
$0.00 |
1 |
(Switch off print) |
| 122 |
192-0460 |
Screw 30 x 10 |
$2.33 |
2 |
|
| 123 |
192-0054 |
Screw M3 x 16mm raised cheese head |
$4.55 |
2 |
|
| 124 |
192-0049 |
Microswitch (OBSOLETE) |
$19.78 |
1 |
|
| 125 |
192-1382 |
Lever (OBSOLETE) |
$32.34 |
1 |
|
| 126 |
192-0048 |
Nut M3 hex |
$2.33 |
2 |
|
| 127 |
192-0706 |
Screw M50 x 16mm for plastic |
$2.52 |
2 |
|
| 128 |
192-1362 |
Elastic ring (OBSOLETE) |
$2.00 |
1 |
|
| 129 |
192-1144 |
Screw M8 x 55mm socket head |
$5.90 |
4 |
|
| 130 |
192-1931 |
Battery indicator (OBSOLETE) |
$177.57 |
1 |
Series 06 |
| 131 |
N/A |
Not available |
$0.00 |
1 |
(Series 06) (Lamp) |
| 132 |
192-6105 |
Rocker switch (OBSOLETE) |
$100.14 |
1 |
Series 06 |
| 133 |
192-4647 |
Key |
$27.26 |
1 |
Series 04 |
| 134 |
192-4665 |
Key switch |
$241.23 |
1 |
Series 04 |
| 135 |
N/A |
Not available |
$0.00 |
1 |
Series 02, Main switch |
| 136 |
N/A |
Not available |
$0.00 |
1 |
Series 02, Printed circular flasher |
|
|
Squeegee Mechanism Assembly - Series 06 - 192-0002 |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
| 101 |
192-1359 |
Bracket (OBSOLETE) |
$4.26 |
1 |
|
| 102 |
192-0162 |
Screw M5 x 8 self tapping forming |
$2.75 |
2 |
|
| 103 |
192-0509 |
Screw M8 x 12mm hex head |
$2.40 |
2 |
|
| 104 |
192-1360 |
Bracket (OBSOLETE) |
$106.74 |
1 |
|
| 105 |
192-1361 |
Slide bearing (OBSOLETE) |
$2.00 |
2 |
|
| 106 |
192-1362 |
Elastic ring (OBSOLETE) |
$2.00 |
4 |
|
| 107 |
192-1363 |
Lever (OBSOLETE) |
$17.74 |
1 |
|
| 108 |
192-0693 |
Retaining ring |
$5.01 |
1 |
|
| 109 |
192-1364 |
Metal rope assembly (OBSOLETE) |
$44.66 |
1 |
|
|
|
Squeegee Assembly - Series 06 - 192-0003 |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
| 000 |
192-1358 |
Squeegee assembly (OBSOLETE) |
$332.69 |
1 |
|
| 001 |
192-0104 |
Screw M8 x 45mm socket head cap |
$2.33 |
2 |
|
| 002 |
192-0105 |
Washer M8 |
$2.33 |
2 |
|
| 003 |
N/A |
Not available |
$0.00 |
4 |
Waved washer |
| 004 |
192-1397 |
Guide wheel |
$5.01 |
2 |
|
| 005 |
192-0108 |
Retaining disc |
$4.50 |
2 |
|
| 006 |
192-1354 |
Bushing |
$7.58 |
2 |
|
| 009 |
192-1355 |
Star knob M6 |
$2.80 |
2 |
|
| 010 |
192-0965 |
Washer |
$2.33 |
2 |
|
| 011 |
192-0114 |
Complete clamping key |
$17.95 |
2 |
|
| 012 |
192-0117 |
Squeegee blade clip set (10 clips) |
$43.66 |
8 |
4 required per blade |
| 013 |
192-0420 |
Hose (sold by the inch) |
$0.90 |
24 in |
|
| 014 |
192-0113 |
Hose cuff |
$2.75 |
1 |
|
| 015 |
192-1357 |
Squeegee weldment |
$96.97 |
1 |
|
| 019 |
192-1315 |
Squeegee blade rear (OBSOLETE) |
$32.37 |
1 |
|
| 020 |
192-1314 |
Squeegee blade front |
$69.07 |
1 |
|
|
|
Machine Undercarriage Assembly - 192-0004 |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
| 101 |
192-0495 |
Screw M6 x 50 socket head cap |
$2.33 |
1 |
|
| 102 |
192-1338 |
Knob |
$13.56 |
1 |
|
| 103 |
192-1339 |
Axle (OBSOLETE) |
$6.00 |
1 |
|
| 104 |
N/A |
Not available |
$0.00 |
1 |
(Bracket) |
| 105a |
192-0912 |
Screw M4 x 16mm raised head |
$2.33 |
2 |
Series 06 |
| 105b |
192-5921 |
Screw M4 x 12 raised cheese head |
$5.94 |
2 |
Series 04 |
| 106 |
192-1341 |
Eccentric ring |
$5.09 |
1 |
|
| 107 |
192-1342 |
Bracket (OBSOLETE) |
$6.20 |
1 |
|
| 108 |
192-1343 |
Bracket (OBSOLETE) |
$52.17 |
1 |
|
| 109 |
192-1344 |
Wave washer |
$6.13 |
1 |
|
| 110 |
192-1345 |
Washer |
$5.13 |
1 |
|
| 111a |
192-0563 |
Nut M6 self-locking |
$2.33 |
1 |
Series 06 |
| 111b |
192-0151 |
Nut M6 hex |
$2.33 |
1 |
Series 04 |
| 113 |
192-0915 |
Nut M4 square |
$3.15 |
1 |
|
| 114 |
192-0722 |
Wheel |
$30.52 |
2 |
|
| 115 |
192-0720 |
Bushing (OBSOLETE) |
$4.94 |
2 |
|
| 116 |
192-0112 |
Washer |
$2.33 |
4 |
|
| 117 |
192-0719 |
Screw M10-50 hex head |
$2.33 |
2 |
|
| 118a |
192-0279 |
Wheel cover w/springs (OBSOLETE) |
$10.99 |
2 |
|
| 118b |
192-0280 |
Spring (OBSOLETE) |
$2.00 |
6 |
|
| 120 |
192-1346 |
Housing (OBSOLETE) |
$271.66 |
1 |
|
| 121 |
999-0178 |
Bolt 5/16-18 x 2 hex head grade 5 zinc plated |
$1.34 |
1 |
|
| 122 |
192-0079 |
Washer |
$2.33 |
5 |
|
| 123 |
192-1347 |
Bushing (OBSOLETE) |
$14.31 |
1 |
|
| 125 |
192-1348 |
Retaining ring |
$5.90 |
4 |
|
| 126 |
192-1349 |
Axle (OBSOLETE) |
$4.26 |
2 |
|
| 127a |
999-0517 |
Bolt M8-1.25 x 16mm hex head full thread zinc |
$0.90 |
2 |
Series 06 |
| 127b |
192-0509 |
Screw M8 x 12mm hex head |
$2.40 |
2 |
Series 04 |
| 128 |
192-0927 |
Squeegee mount bracket |
$232.15 |
1 |
|
| 129 |
192-1195 |
Washer M4 |
$2.33 |
1 |
|
| 130 |
192-0920 |
Screw M4 x 16 hex |
$2.33 |
1 |
|
| 131 |
192-1350 |
Bracket (OBSOLETE) |
$23.00 |
1 |
|
| 132 |
192-1092 |
Tension spring |
$4.55 |
1 |
|
| 133 |
192-0347 |
Nut M8 hex |
$2.33 |
1 |
|
| 134 |
192-0929 |
Star screw (OBSOLETE) |
$5.23 |
1 |
|
| 135 |
192-1351 |
Bracket (OBSOLETE) |
$29.31 |
1 |
|
| 136 |
192-0928 |
Spring (OBSOLETE) |
$2.00 |
1 |
|
| 139 |
192-1109 |
Screw M6 x 10mm hex head |
$2.45 |
1 |
|
| 140 |
192-1353 |
Hook (OBSOLETE) |
$25.11 |
2 |
|
| N/S |
192-6993 |
Water symbol |
$2.00 |
1 |
|
| N/S |
192-6991 |
Battery symbol (OBSOLETE) |
$2.00 |
1 |
|
| N/S |
192-6992 |
Filter label |
$2.33 |
1 |
|
|
|

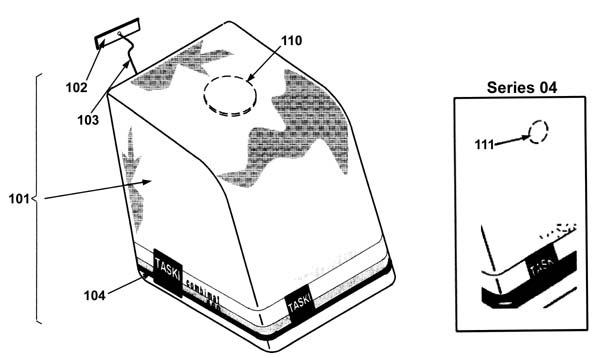

Tank Assembly - 192-0005 |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
| 101a |
192-0968 |
Screw KA 60 x 16 |
$4.20 |
8 |
Series 04 and 06 |
| 101b |
192-0460 |
Screw 30 x 10 |
$2.33 |
2 |
Series 02 |
| 102a |
192-0099 |
Hose holder |
$2.91 |
2 |
Series 04 and 06 |
| 102b |
N/A |
Not available |
$0.00 |
2 |
Series 02 (hose holder) |
| 103 |
192-1324 |
Cover (OBSOLETE) |
$118.71 |
1 |
|
| 104 |
192-1325 |
Noise absorbing plate (OBSOLETE) |
$12.60 |
1 |
|
| 105 |
192-1326 |
Cover (OBSOLETE) |
$8.40 |
1 |
|
| 106 |
192-1327 |
Solution tank (OBSOLETE) |
$505.37 |
1 |
|
| 107 |
192-0741 |
Gasket material (this piece is 39 iches) (OBSOLETE) |
$16.25 |
1 |
cut to 22 inches |
| 108 |
192-1328 |
Recovery tank (OBSOLETE) |
$240.11 |
1 |
|
| 109 |
192-0187 |
Threaded collar |
$2.52 |
1 |
|
| 110 |
192-0737 |
Gasket |
$3.40 |
1 |
|
| 111a |
192-0237 |
Threaded cap (red) |
$2.33 |
1 |
|
| 111b |
192-0236 |
Threaded cap (blue) |
$2.33 |
1 |
|
| 112 |
192-0236 |
Threaded cap (blue) |
$2.33 |
1 |
|
| 114 |
192-1329 |
Noise absorbing plate (OBSOLETE) |
$7.43 |
1 |
|
| 115 |
192-0739 |
Hose |
$30.75 |
2 |
|
| 116 |
192-0115 |
O-ring |
$2.56 |
2 |
|
| 117 |
192-1330 |
Cover (OBSOLETE) |
$20.23 |
1 |
|
| 118 |
192-1331 |
Washer 7/35 |
$4.50 |
4 |
|
| 119 |
192-0509 |
Screw M8 x 12mm hex head |
$2.40 |
2 |
|
| 120a |
192-1332 |
Diagram |
$119.40 |
1 |
Series 06 |
| 120b |
N/A |
Not available |
$0.00 |
1 |
Diagram, Series 02 |
| 121 |
192-1333 |
Latch (OBSOLETE) |
$88.09 |
1 |
|
| 122 |
192-0742 |
Measuring cup (OBSOLETE) |
$7.37 |
1 |
|
| 123 |
192-0714 |
Cord (sold by the inch) |
$2.33 |
28 in |
|
| 124 |
192-0185 |
Decal (blue) |
$2.33 |
1 |
|
| 125 |
192-0738 |
Intake hose |
$452.03 |
1 |
|
| 126 |
192-0079 |
Washer |
$2.33 |
2 |
|
| 127 |
192-1334 |
Screw pan head self tapping |
$2.33 |
2 |
|
| 128 |
192-1335 |
Positioning plate |
$22.00 |
1 |
|
| 129 |
192-1336 |
Nipple with gasket |
$22.47 |
1 |
|
| 130 |
192-1337 |
Gasket (OBSOLETE) |
$2.06 |
4 |
|
|
|

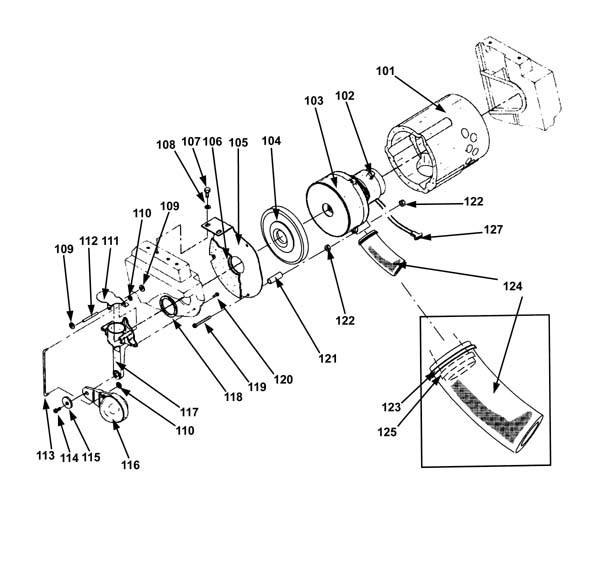

Vacuum Unit Assembly - 192-0006 |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
| 101 |
192-1316 |
Noise absorbing mantle (OBSOLETE) |
$29.51 |
1 |
|
| 102 |
192-0771 |
Carbon brush plastic (black) (clip in) |
$8.35 |
2 |
|
| 103 |
192-7280 |
24V, 2 stage vac motor by pass dual ball tangential discharg |
$301.71 |
1 |
|
| 104 |
N/A |
Not available |
$0.00 |
1 |
(Gasket) |
| 105 |
192-1318 |
Bracket (OBSOLETE) |
$35.31 |
1 |
|
| 106 |
192-1319 |
Noise absorbing disc (OBSOLETE) |
$7.97 |
1 |
|
| 107 |
192-0509 |
Screw M8 x 12mm hex head |
$2.40 |
2 |
|
| 108 |
192-0079 |
Washer |
$2.33 |
2 |
|
| 109 |
192-0653 |
Washer |
$2.33 |
2 |
|
| 110 |
192-0747 |
Washer (OBSOLETE) |
$2.00 |
2 |
|
| 111 |
192-0746 |
Flap (OBSOLETE) |
$65.46 |
1 |
|
| 112 |
192-0745 |
Dowel pin (OBSOLETE) |
$2.00 |
1 |
|
| 113 |
192-0749 |
Rod (OBSOLETE) |
$3.91 |
1 |
|
| 114 |
192-0767 |
Screw KA 40 x 10 |
$3.73 |
1 |
|
| 115 |
192-0750 |
Washer (OBSOLETE) |
$6.26 |
1 |
|
| 116 |
192-0758 |
Float (OBSOLETE) |
$19.54 |
1 |
|
| 117 |
192-1320 |
Housing (OBSOLETE) |
$4.49 |
1 |
|
| 118 |
192-0756 |
Gasket |
$3.24 |
1 |
|
| 119 |
192-1321 |
Screw M6 x 80 raised cheese head (OBSOLETE) |
$2.00 |
3 |
|
| 120 |
192-0547 |
Screw KA 40 x 14 |
$2.33 |
3 |
|
| 121 |
192-1322 |
Bushing (OBSOLETE) |
$3.86 |
3 |
|
| 122 |
192-0151 |
Nut M6 hex |
$2.33 |
6 |
|
| 123 |
192-0794 |
Cable tie |
$3.68 |
1 |
|
| 124 |
192-1323 |
Hose |
$37.52 |
1 |
|
| 125 |
192-0764 |
Hose clamp |
$2.52 |
1 |
|
| 127a |
192-0297 |
2-pole plug |
$2.00 |
1 |
|
| 127b |
192-0298 |
Plug pin |
$2.00 |
2 |
|
|
|
Hood Assembly - 192-0007 |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
| 101 |
192-1310 |
Hood assembly (OBSOLETE) |
$178.06 |
1 |
|
| 102 |
192-1311 |
Holder (OBSOLETE) |
$2.49 |
1 |
|
| 103 |
192-0714 |
Cord (sold by the inch) |
$2.33 |
33 in |
|
| 104 |
192-1312 |
Decorative strip (OBSOLETE) |
$25.66 |
1 |
|
| 110 |
192-1313 |
Accessory holder |
$8.00 |
1 |
|
| 111 |
192-3715 |
Flange (OBSOLETE) |
$25.54 |
1 |
Series 04 |
|
|
Brush Drive Assembly - Series 04 and 06 - 192-0008 |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
| 102 |
192-1279 |
Noise absorbing disc (OBSOLETE) |
$3.91 |
1 |
|
| 103 |
192-1280 |
Noise absorbing shield (OBSOLETE) |
$9.91 |
1 |
|
| 104 |
192-1281 |
Slide bearing (OBSOLETE) |
$8.20 |
2 |
|
| 105 |
192-1282 |
Leveling disc (OBSOLETE) |
$2.00 |
2 |
|
| 106 |
192-1283 |
Retaining ring (OBSOLETE) |
$2.00 |
2 |
|
| 107 |
192-1284 |
Buffer (OBSOLETE) |
$2.89 |
2 |
|
| 108a |
192-1285 |
Screw M6 x 25mm hex head |
$2.33 |
2 |
Series 06 |
| 108b |
192-4222 |
Screw M6 x 20 hex head |
$3.03 |
1 |
Series 04 |
| 109 |
192-1286 |
Tension spring |
$6.99 |
1 |
|
| 110 |
192-1287 |
Shoulder mounting plate (OBSOLETE) |
$47.97 |
1 |
|
| 111 |
192-1288 |
Shoulder disc (OBSOLETE) |
$19.63 |
1 |
|
| 112 |
192-0488 |
Ball bearing |
$4.20 |
2 |
|
| 113 |
192-0489 |
Retaining ring |
$3.85 |
2 |
|
| 114 |
192-0812 |
Tensioner pulley (OBSOLETE) |
$17.89 |
1 |
|
| 115 |
192-0075 |
Retaining ring |
$5.55 |
1 |
|
| 116 |
192-1289 |
Screw M8 x 35mm socket head cap |
$4.31 |
1 |
|
| 117 |
192-0105 |
Washer M8 |
$2.33 |
1 |
|
| 118 |
192-0329 |
Bumper wheel |
$3.33 |
1 |
|
| 119 |
192-1290 |
Bushing |
$4.97 |
1 |
|
| 120 |
192-0079 |
Washer |
$2.33 |
6 |
|
| 121 |
192-1292 |
Bushing |
$2.82 |
1 |
|
| 122 |
192-1293 |
Battery installation guide |
$0.00 |
1 |
|
| 123 |
192-1294 |
Rubber washer |
$2.33 |
1 |
|
| 124 |
192-0347 |
Nut M8 hex |
$2.33 |
2 |
|
| 125 |
192-1295 |
Plate (OBSOLETE) |
$47.97 |
1 |
|
| 126 |
192-0844 |
Axle |
$54.39 |
1 |
|
| 127b |
192-1405 |
Screw M6 x 35 socket head cap |
$3.61 |
3 |
Series 04 |
| 128 |
192-1296 |
Pulley (OBSOLETE) |
$100.00 |
1 |
|
| 129 |
192-0501 |
Ball bearing |
$7.88 |
2 |
|
| 130 |
192-0500 |
Retaining ring |
$2.22 |
2 |
|
| 131a |
192-0813 |
Spacer |
$2.22 |
1 |
|
| 131b |
N/A |
Not available |
$0.00 |
1 |
(Series 04) (leveling disc) |
| 132 |
192-0503 |
Retaining ring |
$2.33 |
1 |
|
| 133 |
192-0814 |
Coupling |
$84.52 |
1 |
|
| 134 |
192-0815 |
Shaft seal |
$2.82 |
1 |
|
| 135 |
192-0816 |
Supporting plug |
$6.64 |
2 |
|
| 136 |
192-0509 |
Screw M8 x 12mm hex head |
$2.40 |
2 |
|
| 137 |
192-1298 |
Bracket (OBSOLETE) |
$9.49 |
6 |
|
| 138 |
192-1299 |
Gasket (OBSOLETE) |
$2.00 |
1 |
|
| 139 |
192-0820 |
O-ring |
$2.33 |
4 |
|
| 140 |
192-0153 |
Screw M8 x 20mm hex head |
$2.33 |
1 |
|
| 141 |
192-0721 |
Washer waved |
$2.33 |
1 |
|
| 142 |
192-0841 |
Nipple (OBSOLETE) |
$20.09 |
1 |
|
| 143 |
192-1300 |
Flange (OBSOLETE) |
$57.14 |
2 |
|
| 144 |
192-1301 |
Washer (OBSOLETE) |
$3.91 |
1 |
|
| 145 |
192-1302 |
Brush housing (OBSOLETE) |
$35.94 |
1 |
|
| 146 |
192-1303 |
Nipple (OBSOLETE) |
$17.72 |
1 |
|
| 147 |
192-2351 |
Bumper (sold by the inch) |
$6.83 |
36 in |
|
| 148 |
192-1304 |
Bracket (OBSOLETE) |
$28.49 |
1 |
|
| 149 |
192-1305 |
Bracket (OBSOLETE) |
$38.40 |
2 |
|
| 150 |
192-1109 |
Screw M6 x 10mm hex head |
$2.45 |
1 |
|
| 151 |
192-1306 |
Bushing |
$6.71 |
2 |
|
| 152 |
192-0828 |
Bushing (OBSOLETE) |
$6.94 |
1 |
|
| 153 |
192-0829 |
Pulley (OBSOLETE) |
$36.20 |
1 |
|
| 154 |
999-0178 |
Bolt 5/16-18 x 2 hex head grade 5 zinc plated |
$1.34 |
1 |
|
| 155 |
192-1307 |
Drive belt |
$53.03 |
1 |
|
| 156 |
192-1308 |
Lever (OBSOLETE) |
$439.57 |
1 |
|
| 157 |
192-1309 |
Base plate (OBSOLETE) |
$586.71 |
1 |
|
| 158 |
999-0517 |
Bolt M8-1.25 x 16mm hex head full thread zinc |
$0.90 |
5 |
|
|
|
Water Outlet Assembly - 192-0080 |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
| 001 |
192-0893 |
Hose (sold by the inch) |
$0.90 |
12 in |
|
| 002 |
192-0892 |
Silicone hose (sold by the inch) |
$0.90 |
32 in |
|
| 003 |
192-0404 |
Wire reinforced hose (sold by the inch) |
$0.90 |
6 in |
|
|
|
Brush Motor Assembly - 192-0083 |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
| 121 |
192-1273 |
Brush motor assembly (OBSOLETE) |
$1,338.97 |
1 |
|
| 122a |
192-1274 |
Ball bearing (OBSOLETE) |
$7.63 |
1 |
|
| 122b |
192-6037 |
Retaining ring |
$2.33 |
2 |
|
| 122c |
192-1275 |
Carbon brush (OBSOLETE) |
$55.74 |
2 |
|
| 122d |
192-1276 |
Fan (OBSOLETE) |
$17.20 |
1 |
|
| 126a |
192-0501 |
Ball bearing |
$7.88 |
1 |
|
| 126b |
192-0503 |
Retaining ring |
$2.33 |
1 |
|
| 128a |
192-1257 |
Plug housing (OBSOLETE) |
$3.71 |
1 |
|
| 128b |
192-1258 |
Plug tongue (OBSOLETE) |
$2.00 |
1 |
|
|
|

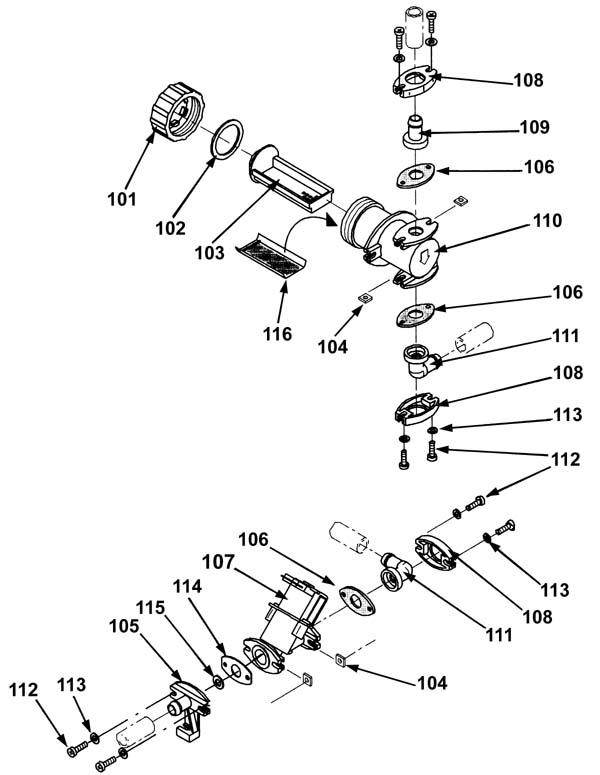

Magnetic Valve Filter Assembly - 192-0084 |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
| 101 |
292-0082 |
Filter kit |
$10.61 |
1 |
|
| 102 |
292-0082 |
Filter kit |
$10.61 |
1 |
|
| 103 |
292-0082 |
Filter kit |
$10.61 |
1 |
|
| 104 |
192-0915 |
Nut M4 square |
$3.15 |
10 |
|
| 105 |
192-0919 |
Valve flange (OBSOLETE) |
$5.57 |
1 |
|
| 106 |
192-0914 |
Gasket |
$2.33 |
3 |
|
| 107a |
192-0917 |
24V magnetic valve (OBSOLETE) |
$51.90 |
1 |
|
| 107b |
N/A |
Not available |
$0.00 |
|
Repair set valve |
| 108 |
192-0911 |
Flange |
$5.13 |
3 |
|
| 109 |
192-0913 |
Nipple |
$2.82 |
1 |
|
| 110 |
192-0910 |
Filter housing |
$6.36 |
1 |
|
| 111 |
192-0916 |
Angled nipple |
$8.97 |
2 |
|
| 112 |
192-0912 |
Screw M4 x 16mm raised head |
$2.33 |
8 |
|
| 113 |
192-0149 |
Washer |
$2.33 |
8 |
|
| 114 |
192-1270 |
Intermediate plate |
$2.33 |
1 |
|
| 115 |
192-1271 |
Gasket |
$2.33 |
1 |
|
| 116 |
192-1272 |
Filter insert |
$2.33 |
1 |
|
|
|

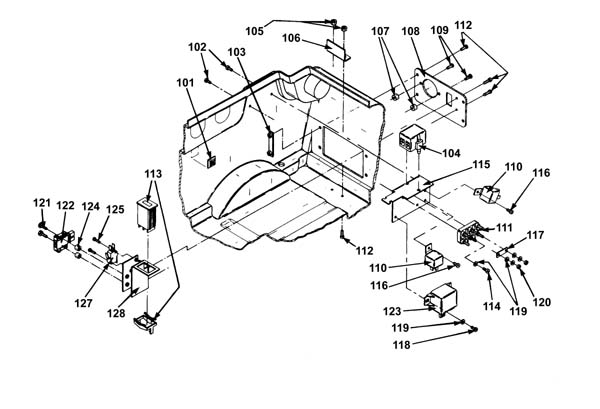

Electrical Parts Assembly - Series 04 and 06 - 192-0085 |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
| 101 |
192-0008 |
Self-adhesive plate (OBSOLETE) |
$0.55 |
8 |
|
| 102a |
192-0160 |
Screw M5 x 10mm raised head |
$3.33 |
2 |
Series 06 |
| 102b |
192-8301 |
Screw M5 x 10 raised cheese head |
$0.84 |
2 |
Series 04 |
| 103 |
192-1263 |
Plate (OBSOLETE) |
$15.97 |
2 |
|
| 104 |
192-1264 |
Bushing (OBSOLETE) |
$5.43 |
2 |
|
| 105 |
192-1265 |
Plate (OBSOLETE) |
$20.23 |
1 |
|
| 106a |
192-0912 |
Screw M4 x 16mm raised head |
$2.33 |
8 |
Series 06 |
| 106b |
192-1105 |
Screw M4 x 20mm socket head |
$2.33 |
2 |
Series 04 |
| 107 |
192-0294 |
Screw M3 x 20 raised cheese head |
$2.33 |
4 |
|
| 108a |
192-1266 |
50amp charger plug SB50 |
$11.61 |
1 |
|
| 108b |
192-1267 |
50amp charger plug pin |
$6.01 |
2 |
|
| 109 |
192-1268 |
Microswitch (OBSOLETE) |
$19.20 |
1 |
|
| 110 |
192-0033 |
24V hour meter |
$78.16 |
1 |
|
| 111 |
192-1269 |
Holder (OBSOLETE) |
$58.77 |
1 |
|
|
|

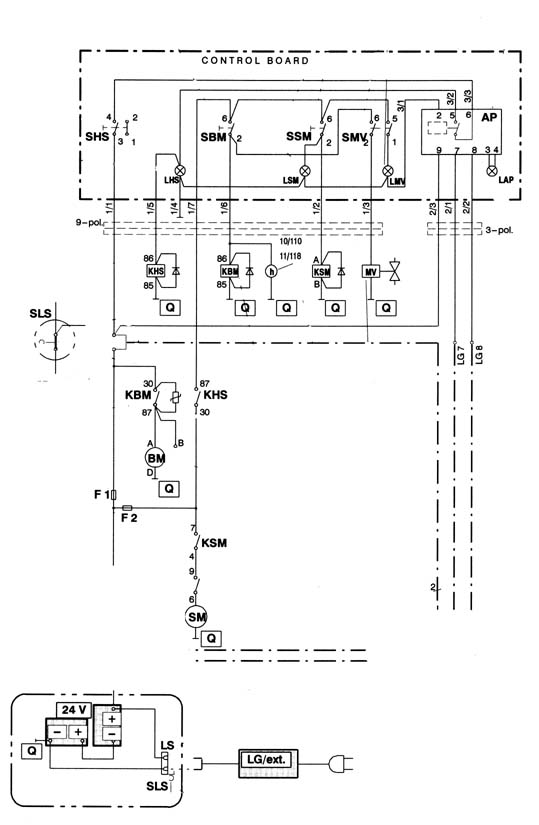

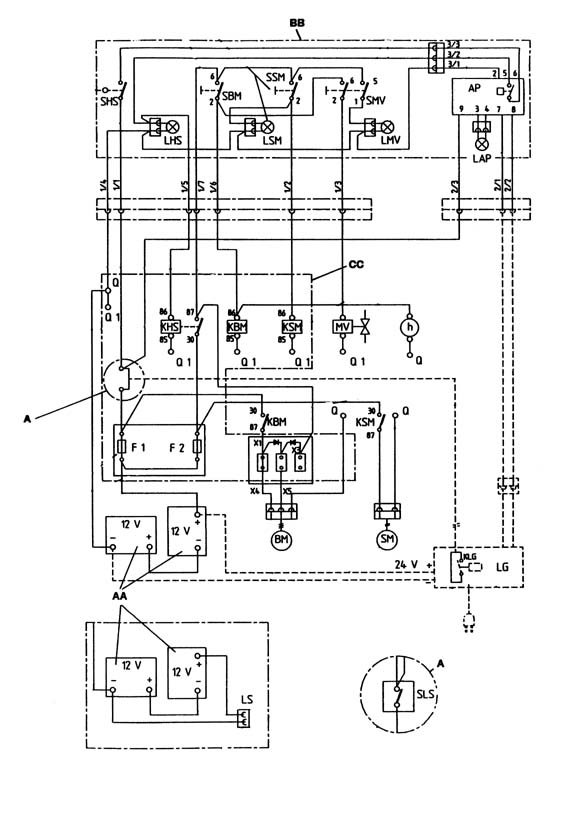

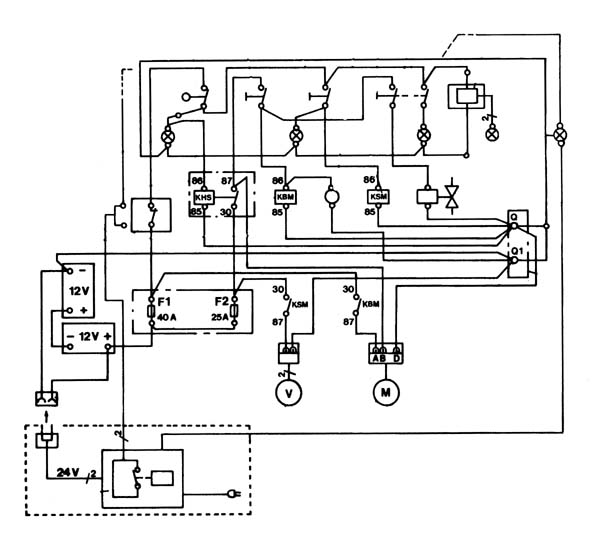

Electrical Diagram - Series 06 Part 1 - 192-0086 |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
| 001 |
192-1247 |
Cable strand complete (without red plug) (OBSOLETE) |
$248.66 |
1 |
|
| 002 |
192-1248 |
Lock nut |
$2.33 |
1 |
|
| 003 |
192-1249 |
Cable bushing |
$5.83 |
1 |
|
| 004a |
192-0686 |
2-Pole plug (OBSOLETE) |
$2.00 |
1 |
|
| 004b |
192-1255 |
Socket insert (OBSOLETE) |
$2.00 |
2 |
|
| 005a |
192-1250 |
Battery clamp (negative) (OBSOLETE) |
$27.74 |
1 |
|
| 005b |
192-0886 |
Battery post cover |
$2.80 |
|
|
| 006a |
192-1251 |
Fuse holder (OBSOLETE) |
$16.23 |
2 |
|
| 006b |
192-0377 |
Screw M5 x 10mm self-tapping |
$2.33 |
4 |
|
| 007 |
192-0873 |
Fuse strip 25 amp (OBSOLETE) |
$2.00 |
1 |
|
| 008 |
192-1252 |
Fuse strip 40 amp |
$2.33 |
1 |
|
| 009a |
192-1253 |
Battery clamp (positive) (OBSOLETE) |
$27.89 |
1 |
|
| 009b |
192-0886 |
Battery post cover |
$2.80 |
|
|
| 010a |
192-1254 |
9 - Pole plug (OBSOLETE) |
$2.26 |
1 |
|
| 010b |
192-1255 |
Socket insert (OBSOLETE) |
$2.00 |
|
|
| 011a |
192-1256 |
3 - Pole plug (OBSOLETE) |
$2.00 |
1 |
|
| 011b |
192-1255 |
Socket insert (OBSOLETE) |
$2.00 |
|
|
| 012a |
192-1257 |
Plug housing (OBSOLETE) |
$3.71 |
3 |
|
| 012b |
192-1258 |
Plug tongue (OBSOLETE) |
$2.00 |
|
|
| 013 |
192-1259 |
Overvoltage suppressor (OBSOLETE) |
$2.49 |
1 |
|
| 014 |
192-1260 |
Diode 1 volt 3 amp (OBSOLETE) |
$4.14 |
2 |
|
| 015a |
192-0374 |
Relay 24V |
$356.93 |
1 |
|
| 015b |
192-0162 |
Screw M5 x 8 self tapping forming |
$2.75 |
2 |
|
| 016a |
192-0372 |
24V relay (OBSOLETE) |
$69.93 |
1 |
|
| 016b |
192-0060 |
Screw M4 x 8 self tapping forming |
$2.22 |
2 |
|
| 017a |
192-0871 |
Relay console (OBSOLETE) |
$4.20 |
1 |
|
| 017b |
192-0162 |
Screw M5 x 8 self tapping forming |
$2.75 |
1 |
|
| 018 |
192-0870 |
Relay 24V |
$16.23 |
1 |
|
| 019a |
192-1261 |
2 - Pole plug (OBSOLETE) |
$2.00 |
1 |
|
| 019b |
192-1262 |
Socket insert (OBSOLETE) |
$2.00 |
|
|
|
|
Electrical Parts Assembly - Series 02 - 192-2028 |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
| 101 |
192-0008 |
Self-adhesive plate (OBSOLETE) |
$0.55 |
8 |
|
| 102 |
192-8301 |
Screw M5 x 10 raised cheese head |
$0.84 |
2 |
|
| 103 |
192-1263 |
Plate (OBSOLETE) |
$15.97 |
2 |
|
| 104a |
192-3896 |
Fuse holder set (OBSOLETE) |
$79.14 |
1 |
|
| 104b |
N/A |
Not available |
$0.00 |
1 |
(25amp bullet fuse) |
| 104c |
N/A |
Not available |
$0.00 |
1 |
Fuse 40 amp |
| 105 |
192-0039 |
Nut M4 hex |
$3.92 |
2 |
|
| 106 |
N/A |
Not available |
$0.00 |
1 |
Bracket |
| 107 |
192-1264 |
Bushing (OBSOLETE) |
$5.43 |
2 |
|
| 108 |
192-1265 |
Plate (OBSOLETE) |
$20.23 |
1 |
|
| 109 |
192-1105 |
Screw M4 x 20mm socket head |
$2.33 |
2 |
|
| 110 |
192-6000 |
Relay 24 volt 20amp (OBSOLETE) |
$36.69 |
2 |
|
| 111 |
N/A |
Not available |
$0.00 |
1 |
Connection plate |
| 112 |
192-5921 |
Screw M4 x 12 raised cheese head |
$5.94 |
8 |
|
| 113 |
192-0033 |
24V hour meter |
$78.16 |
1 |
|
| 114 |
N/A |
Not available |
$0.00 |
2 |
Screw M5 x 12 cheese head |
| 115 |
N/A |
Not available |
$0.00 |
1 |
Plate |
| 116 |
N/A |
Not available |
$0.00 |
2 |
Screw M5 x 6 cheese head |
| 117 |
N/A |
Not available |
$0.00 |
1 |
Plate |
| 118 |
192-1240 |
Screw M5 x 10mm raised cheese head |
$3.10 |
2 |
|
| 119 |
192-0880 |
Washer M5 |
$2.33 |
8 |
|
| 120 |
192-0383 |
Nut M5 hex |
$2.91 |
2 |
|
| 121 |
192-0294 |
Screw M3 x 20 raised cheese head |
$2.33 |
2 |
|
| 122 |
192-8655 |
Charger jack housing |
$22.40 |
1 |
|
| 123 |
192-0374 |
Relay 24V |
$356.93 |
1 |
|
| 124 |
N/A |
Not available |
$0.00 |
1 |
Bushing |
| 125 |
192-0054 |
Screw M3 x 16mm raised cheese head |
$4.55 |
2 |
|
| 127 |
192-1268 |
Microswitch (OBSOLETE) |
$19.20 |
1 |
|
| 128 |
192-1269 |
Holder (OBSOLETE) |
$58.77 |
1 |
|
|
|
Electrical Diagram - Series 06 Part 2 - |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
|
|
Electrical Diagram - Series 02 - |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
|
|
Electrical Diagram - Series 04 - |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
|
|
Squeegee Mechanism Assembly - Series 02 and 04 - 192-7003 |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
| 201 |
192-1362 |
Elastic ring (OBSOLETE) |
$2.00 |
4 |
|
| 202 |
N/A |
Not available |
$0.00 |
1 |
Lever |
| 203 |
192-1361 |
Slide bearing (OBSOLETE) |
$2.00 |
2 |
|
| 204 |
192-1360 |
Bracket (OBSOLETE) |
$106.74 |
1 |
|
| 205 |
192-6756 |
Stop spring (OBSOLETE) |
$32.77 |
1 |
|
| 206 |
192-0509 |
Screw M8 x 12mm hex head |
$2.40 |
2 |
|
| 207 |
192-0693 |
Retaining ring |
$5.01 |
1 |
|
| 208a |
192-5019 |
Complete metal rope with bushing (OBSOLETE) |
$51.74 |
1 |
|
| 208b |
N/A |
Not available |
$0.00 |
1 |
Series 02, Metal rope |
| 208c |
N/A |
Not available |
$0.00 |
1 |
Series 02, Bushing |
| 209 |
192-7424 |
Washer 8.4/20 |
$2.33 |
2 |
|
| 210 |
N/A |
Not available |
$0.00 |
1 |
Series 02, Bushing |
| 213 |
N/A |
Not available |
$0.00 |
1 |
Series 02, Clamp |
|
|

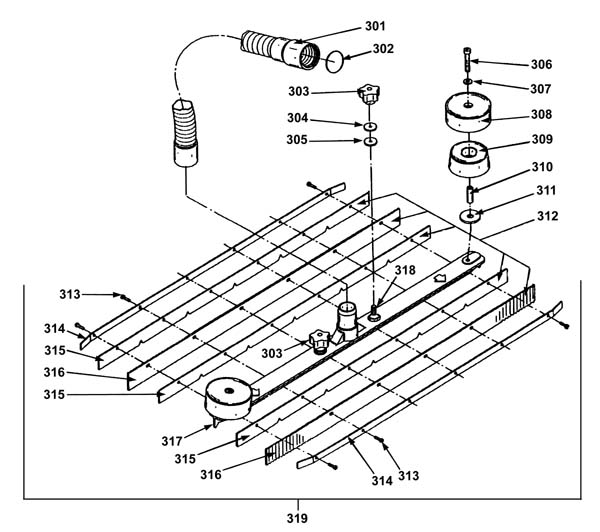

Squeegee Assembly - Series 02 and 04 - 192-7004 |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
| 301 |
192-1356 |
Hose |
$19.54 |
1 |
|
| 302 |
192-0115 |
O-ring |
$2.56 |
1 |
|
| 303 |
192-1355 |
Star knob M6 |
$2.80 |
2 |
|
| 304 |
192-0965 |
Washer |
$2.33 |
2 |
|
| 305 |
192-3980 |
Gasket |
$2.22 |
2 |
|
| 306 |
192-0104 |
Screw M8 x 45mm socket head cap |
$2.33 |
2 |
|
| 307 |
192-0105 |
Washer M8 |
$2.33 |
2 |
|
| 308 |
192-1397 |
Guide wheel |
$5.01 |
2 |
|
| 309 |
192-1404 |
Weight (OBSOLETE) |
$21.40 |
2 |
|
| 310 |
192-2377 |
Bushing (OBSOLETE) |
$2.26 |
2 |
|
| 311 |
192-1078 |
Washer |
$5.13 |
2 |
|
| 312 |
192-6361 |
Sggy blades 25 9/10 in (2 red & 3 black) (OBSELETE) |
$135.86 |
1 |
|
| 313 |
192-0723 |
Screw M5 x 6mm |
$2.33 |
12 |
|
| 314 |
192-3191 |
Covering rail (OBSOLETE) |
$17.69 |
2 |
|
| 315 |
192-6892 |
Squeegee blade supporting |
$20.45 |
3 |
|
| 316 |
N/A |
Not available |
$0.00 |
2 |
(Squeegee blade) |
| 317 |
192-6630 |
Squeegee weldment (OBSOLETE) |
$134.14 |
1 |
|
| 318 |
192-4068 |
Grub screw M6 x 20 |
$2.33 |
2 |
|
| 319 |
192-1358 |
Squeegee assembly (OBSOLETE) |
$332.69 |
1 |
|
|
|
Brush Drive Assembly - Series 02 - 192-7010 |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
| 701 |
192-1273 |
Brush motor assembly (OBSOLETE) |
$1,338.97 |
1 |
|
| 702 |
192-0509 |
Screw M8 x 12mm hex head |
$2.40 |
2 |
|
| 703 |
192-1039 |
Screw M8 x 60mm hex head |
$5.66 |
2 |
|
| 704 |
192-1192 |
Disc (OBSOLETE) |
$2.00 |
2 |
|
| 706 |
999-0517 |
Bolt M8-1.25 x 16mm hex head full thread zinc |
$0.90 |
2 |
|
| 707 |
192-0079 |
Washer |
$2.33 |
6 |
|
| 708 |
192-1283 |
Retaining ring (OBSOLETE) |
$2.00 |
11 |
|
| 709 |
192-1282 |
Leveling disc (OBSOLETE) |
$2.00 |
2 |
|
| 710 |
192-1281 |
Slide bearing (OBSOLETE) |
$8.20 |
2 |
|
| 711 |
N/A |
Not available |
$0.00 |
2 |
Bracket |
| 713 |
N/A |
Not available |
$0.00 |
2 |
Bushing |
| 714 |
192-0151 |
Nut M6 hex |
$2.33 |
2 |
|
| 715 |
192-0200 |
Washer M6 |
$2.98 |
1 |
|
| 716 |
192-0158 |
Screw M6 x 20mm socket head cap |
$2.40 |
1 |
|
| 717 |
192-0841 |
Nipple (OBSOLETE) |
$20.09 |
2 |
|
| 718 |
192-1300 |
Flange (OBSOLETE) |
$57.14 |
1 |
|
| 719 |
192-0844 |
Axle |
$54.39 |
1 |
|
| 720 |
192-1405 |
Screw M6 x 35 socket head cap |
$3.61 |
1 |
|
| 721 |
192-1296 |
Pulley (OBSOLETE) |
$100.00 |
3 |
|
| 723 |
192-0812 |
Tensioner pulley (OBSOLETE) |
$17.89 |
1 |
|
| 724 |
192-1293 |
Battery installation guide |
$0.00 |
1 |
|
| 725 |
192-0489 |
Retaining ring |
$3.85 |
1 |
|
| 726 |
N/A |
Not available |
$0.00 |
2 |
Pressure spring |
| 727 |
N/A |
Not available |
$0.00 |
1 |
Belt tightener |
| 728 |
N/A |
Not available |
$0.00 |
1 |
Bushing |
| 729 |
192-0075 |
Retaining ring |
$5.55 |
1 |
|
| 731 |
192-0488 |
Ball bearing |
$4.20 |
1 |
|
| 732 |
192-0347 |
Nut M8 hex |
$2.33 |
2 |
|
| 733 |
192-1289 |
Screw M8 x 35mm socket head cap |
$4.31 |
5 |
|
| 734 |
192-0105 |
Washer M8 |
$2.33 |
1 |
|
| 735 |
192-0329 |
Bumper wheel |
$3.33 |
1 |
|
| 736 |
192-1290 |
Bushing |
$4.97 |
1 |
|
| 737 |
192-0721 |
Washer waved |
$2.33 |
1 |
|
| 738 |
192-1292 |
Bushing |
$2.82 |
1 |
|
| 739 |
192-1299 |
Gasket (OBSOLETE) |
$2.00 |
1 |
|
| 741 |
192-1295 |
Plate (OBSOLETE) |
$47.97 |
5 |
|
| 742 |
192-1298 |
Bracket (OBSOLETE) |
$9.49 |
1 |
|
| 744 |
192-1303 |
Nipple (OBSOLETE) |
$17.72 |
2 |
|
| 745 |
192-0820 |
O-ring |
$2.33 |
1 |
|
| 746 |
192-0153 |
Screw M8 x 20mm hex head |
$2.33 |
1 |
|
| 747 |
192-1301 |
Washer (OBSOLETE) |
$3.91 |
6 |
|
| 748 |
192-1302 |
Brush housing (OBSOLETE) |
$35.94 |
2 |
|
| 749 |
192-2351 |
Bumper (sold by the inch) |
$6.83 |
37 in |
|
| 751 |
192-1305 |
Bracket (OBSOLETE) |
$38.40 |
1 |
|
| 752 |
192-1304 |
Bracket (OBSOLETE) |
$28.49 |
1 |
|
| 753 |
192-1309 |
Base plate (OBSOLETE) |
$586.71 |
1 |
|
| 754 |
192-1109 |
Screw M6 x 10mm hex head |
$2.45 |
1 |
|
| 756 |
192-0828 |
Bushing (OBSOLETE) |
$6.94 |
2 |
|
| 757 |
192-0829 |
Pulley (OBSOLETE) |
$36.20 |
1 |
|
| 758 |
999-0178 |
Bolt 5/16-18 x 2 hex head grade 5 zinc plated |
$1.34 |
1 |
|
| 759 |
192-1306 |
Bushing |
$6.71 |
1 |
|
| 760 |
192-1308 |
Lever (OBSOLETE) |
$439.57 |
1 |
|
| 761 |
192-1307 |
Drive belt |
$53.03 |
1 |
|
| 762 |
192-0501 |
Ball bearing |
$7.88 |
1 |
|
| 763 |
192-0500 |
Retaining ring |
$2.22 |
2 |
|
| 765 |
192-0503 |
Retaining ring |
$2.33 |
2 |
|
| 766 |
192-0814 |
Coupling |
$84.52 |
1 |
|
| 767 |
192-0815 |
Shaft seal |
$2.82 |
1 |
|
| 768 |
192-0816 |
Supporting plug |
$6.64 |
1 |
|
|
|
- NON-US Commonly Asked For Parts - 192-9973 |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
| 0.9835 |
192-3692 |
Fine wire fuse 6,3 A slow blow (OBSOLETE) |
$2.26 |
|
NON-US Models only |
| 0.9835 |
192-3690 |
Fine wire fuse 2 A slow blow |
$2.22 |
|
NON-US Models only |
|
|
- Batteries, Brushes and Chargers - 192-9991 |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
| 01 |
162-0114 |
12V 50Ah AGM battery |
$227.71 |
2 |
|
| 02a |
192-9001 |
24V 12amp SCR battery charger w/small SB50 gray plug (OBSOLE |
$415.88 |
1 |
|
| 02b |
192-8777 |
24V 8amp SPE smart charger (OBSOLETE) |
$618.30 |
1 |
|
| 03 |
N/A |
Not available |
$0.00 |
1 |
(Soft nylon scrubbing brush) |
| 04a |
996-1131 |
15 inch pad driver (OBSOLETE) |
$168.05 |
1 |
|
| 05 |
192-0925 |
Clutch plate |
$70.97 |
1 |
|
| 06 |
192-0924 |
Screw 5 x 20 pan head self-tapping (OBSOLETE) |
$2.00 |
3 |
|
| 4b |
996-8186 |
15 inch pad driver |
$264.35 |
1 |
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Price |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
$40.84 |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
$40.84 |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
$23.04 |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
$44.52 |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
$32.00 |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
$37.74 |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
$47.32 |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
$44.52 |
|
|
| 7 |
N/A |
Not available |
$0.00 |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
$29.10 |
|
|
| 9 |
N/A |
Not available |
$0.00 |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
$25.17 |
|
|
|
|
