Parts List Complete for TASKI COMBIMATSWINGO3500


Suction Hood Assembly - 192-0062
RefNbr Part Number Description Price Req Notes
1 192-0947 Vacuum hood $442.87 1
2 192-4013 Gasket assembly $69.15 1
3 192-3996 Gasket (sold by the inch) $9.30 73 in
4 192-0949 Gasket set $4.00 1
5 192-0948 Noise absorbing foam $79.70 1
6 192-0946 Disc $12.10 1
7 192-0187 Threaded collar $2.40 1
8 192-0945 Cover with threaded stud $30.86 1
9 192-0969 Tank base $312.53 1

Upper Tank Assembly - 192-0063
RefNbr Part Number Description Price Req Notes
101 192-0965 Washer $2.22 4
102 192-0964 Washer $2.22 2
103 192-0971 Washer $2.22 10
104 192-0956 24V 3 stage vac motor $286.25 1
105 192-0414 Valve seal $13.28 1
106 192-0732 Ferrite bushing $2.73 2
107 192-3095 Cover $10.06 1
108 192-0401 T-connector $5.44 1
109 192-0955 Base plate $110.22 1
110 192-0969 Tank base $312.53 1
111 192-0772 Gasket $38.58 1
112 192-0625 Screw 50 x 25 for plastic $3.17 4
113 192-0958 Screw 50 x 16 for plastic $5.39 6
114 192-0968 Screw KA 60 x 16 $4.00 6
115 192-0054 Screw M3 x 16mm raised cheese head $4.33 2
116 192-1452 Solution pump assembly $437.05 1 (includes 138-139)
117 192-1562 Guide ring $6.72 1
118 192-0966 Tank sensor $23.87 2
119a 192-0400 Wire reinforced hose (sold by the inch) $0.90 8 in
119b 192-0400 Wire reinforced hose (sold by the inch) $0.90 10 in
119c 192-0400 Wire reinforced hose (sold by the inch) $0.90 20 in
119d 192-0400 Wire reinforced hose (sold by the inch) $0.90 25 in (models 8004741 and 7525162)
119e 192-0400 Wire reinforced hose (sold by the inch) $0.90 46 in (models 8004740 and 7525161)
120 192-0978 Hose clamp $3.22 3
121 192-0957 Hose clamp $2.84 3
122 192-0334 Hose clamp $2.22 4
123 192-0899 Screw M6 x 25mm hex head $3.29 2
124 192-0960 Nut lock $2.22 1
125 999-1308 Nut M6-1 hex stainless steel $0.90 4
126 192-0959 Grommet $5.84 2
127 192-1569 Sealing ring $6.17 1
128 192-3890 Fuse holder $14.43 1
129 192-3892 Fuse clip $2.22 1
130 192-0962 Corrugated hose (sold by the inch) $58.67 16 in
131 192-0967 Filter disc $57.83 1
134 192-3596 Female plate clip $2.22 1
135 192-0398 Male connector $5.66 1
136 192-0951 6 way connection block $8.88 1
137 192-0961 Adapter $28.04 1
138 192-1385 Pump head assembly $263.36 1
139 192-5860 Pump head $341.08 1
140 192-1205 Female quick connect $93.91 1 (models 8004741 and 7525162)
141 192-0220 O-ring $2.22 2 (models 8004741 and 7525162)
142 192-0224 Packing ring $17.43 1 (models 8004741 and 7525162)
143 192-0400 Wire reinforced hose (sold by the inch) $0.90 24 in (models 8004741 and 7525162)
144 192-0978 Hose clamp $3.22 1 (models 8004741 and 7525162)
145 192-0957 Hose clamp $2.84 2 (models 8004741 and 7525162)
146 192-0959 Grommet $5.84 1 (models 8004741 and 7525162)
147 192-1206 Cover $32.41 1 (models 8004741 and 7525162)
148 192-1209 Filter cage $136.04 1 (models 8004741 and 7525162)
149 192-0222 10 inch outer filter sleeve $39.25 1 (models 8004741 and 7525162)
150 192-1204 Male quick connect $43.13 1 (models 8004741 and 7525162)
151 192-1207 Pipe $10.55 1 (models 8004741 and 7525162)
152 192-0221 Pin $12.77 1 (models 8004741 and 7525162)
N/S 192-0102 7 3/4 inch cable tie $2.22 3
N/S 192-0973 3 1/4 inch cable tie $2.22 4
N/S 192-0992 Filter cage $6.55 1 (models 8004740 and 7525161)
N/S 192-0991 O-ring $2.22 1
N/S 192-0993 4 inch filter bag $17.83 1
N/S 192-0990 Screwing socket $20.20 1

Lower Tank Assembly - 192-0064
RefNbr Part Number Description Price Req Notes
101 192-0974 Bladder bag frame $82.87 1
102 192-0975 Bladder bag $457.03 1
103 192-0714 Cord (sold by the inch) $2.22 20 in
104 192-0976 Measuring cup $21.98 1
105 192-0958 Screw 50 x 16 for plastic $5.39 2
106 192-0977 Hinge bolt $10.21 2
107 192-0099 Hose holder $2.78 3
108 192-0978 Hose clamp $3.22 1
109 192-0130 Hose clamp $2.22 2
110 192-0237 Threaded cap (red) $2.22 1 (recovery)
111 192-0979 Hose $24.71 1 (recovery drain)
114 192-0981 Packing ring $16.21 1
115 192-0982 Cover with packing ring $183.37 1
116 192-0983 Inlet filter assembly $121.66 1
117 192-0510 Nut M8 self locking $2.22 1
118 192-0984 Threaded rod $21.31 1
119 192-0985 Bracket $4.28 1
120 192-6901 Supporting bow $31.59 1
121 192-0968 Screw KA 60 x 16 $4.00 8
122 192-0897 Washer $3.95 2
123 192-0347 Nut M8 hex $2.22 2
124 192-4364 Hose clamp $33.30 1
125 192-0987 Axle $73.88 1
126 192-0278 Screw M8 x 25mm socket head $2.55 2
127 192-0988 Plate $2.33 2
128 192-0989 Tank $972.14 1
129 192-0990 Screwing socket $20.20 1
130 192-0991 O-ring $2.22 1
131 192-0992 Filter cage $6.55 1
132 192-0993 4 inch filter bag $17.83 1
133 192-0994 Self-adhesive strip $8.10 2
134 192-0995 Tank key $44.13 1
135 192-1571 Screw M50 x 16mm $2.22 8

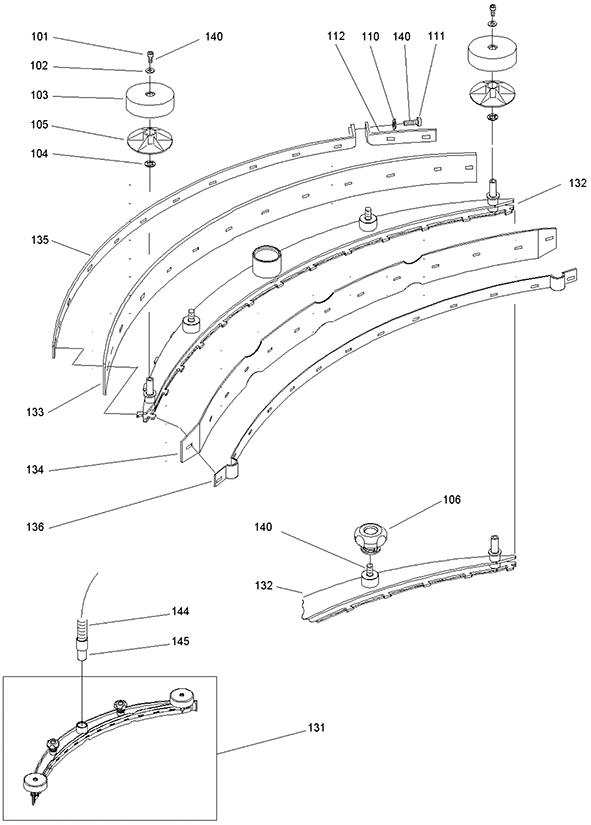

Squeegee Assembly - 192-0065
RefNbr Part Number Description Price Req Notes
101 192-0243 Screw M8 x 20mm socket head $2.22 2
102 192-0105 Washer M8 $2.22 2
103 192-1397 Guide wheel $4.77 2
104 192-1344 Wave washer $5.84 2
105 192-0108 Retaining disc $4.28 2
106 192-0111 Star knob $17.16 2
110 192-0206 Washer M5 $3.55 1
111 192-1003 Screw M5 x 35mm raised cheese head torx $2.22 1
112 192-1004 Short rear tightening strap (OBSOLETE) $141.19 1
131 N/A Not available $0.00 1 (complete squeegee)
132 192-1012 42 1/2 inch squeegee weldment $691.95 1
133a 192-1013 Squeegee blade 47 1/2 inch rear $134.71 1
133b 192-2057 Squeegee blade 42 1/2 inch rear (OBSOLETE) $117.28 2 (option) (This is a set of 2 rear blades to be used on grouted tile surface. This does NOT include a front blade.)
134a 192-1014 Squeegee blade 42 1/2 inch front $96.97 1
134b 292-0923 Squeegee blade $57.14 1 (option)
135 192-1015 Long rear tightening strap $124.61 1
140 192-1872 Grease $10.90 1
144 192-0980 Hose (OBSOLETE) $16.83 1
145 192-0113 Hose cuff $2.62 1

Squeegee Mechanism Assembly - 192-0066
RefNbr Part Number Description Price Req Notes
0a 292-1027 Squeegee mechanism set $0.00 1 (includes 1-28)
0b 192-1018 Squeegee mechanism assembly $1,063.29 1 (includes 1-11, 13-14, 16-26, 28)
1 192-1040 Bracket $49.24 1
2 192-1032 Bracket $30.41 1
3 192-1034 Slide bearing $2.22 7
4 192-1041 Axle $11.88 1
5 192-0075 Retaining ring $5.28 2
6 192-1797 Axle $9.06 1
7 192-1035 Slide bearing $2.22 2
8 192-1038 Pipe $10.55 1
9 192-1039 Screw M8 x 60mm hex head $5.39 1
10 192-0074 Slide bearing $2.22 6
11 192-1043 Lever $47.73 1
12 292-0956 Console $0.00 1
13 292-8521 Catch $64.94 1
14 192-1125 Stop buffer $4.40 2
15 192-0510 Nut M8 self locking $2.22 2
16 192-0194 Screw M6 x 20mm socket head cap $3.55 1
17 192-1030 Bushing $8.44 2
18 192-1033 Bushing $15.43 1
19 999-6766 Screw M6-1.0 x 30mm socket head stainless steel $1.32 3
20 292-8520 Axle $12.50 1
21 192-6037 Retaining ring $2.22 1
22 192-1027 Gear $87.76 1
23 192-1023 Squeegee actuator $439.47 1 (includes 29-33)
24 192-1025 Stud for spring $10.55 1
25 192-1026 Spring $13.61 1
26 192-1872 Grease $10.90 1
27 192-0807 Retaining ring $2.22 1
28 192-1024 Buffer assembly $87.53 1
29 292-8519 Rubber cap $14.10 1
30 192-0794 Cable tie $3.51 1
31a 192-0035 Screw M5 x 16mm socket head cap $2.22 3
31b 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.90 3
32 192-0091 Washer $4.06 3
33 192-0200 Washer M6 $2.84 3
N/S 192-1021 Support $319.04 1 (version 6) (included with 0b)
N/S 192-1029 Bracket $133.16 1 (version 6) (included with 0b)
N/S 292-8522 Resistor $37.76 1 (version 6) (2008-2009) (included with 0b)
N/S 192-1028 Bolt $33.26 1 (version 6) (included with 0b)
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $50.00 1 (version 6) (included with 0b)

Electrical Assembly - 192-0071
RefNbr Part Number Description Price Req Notes
101 192-4577 Insulating nut $20.05 1
102 192-3891 125amp fuse cartridge $35.41 1
103 192-2505 Battery cable clamp $20.38 1
104 192-1157 175amp charger housing with post (gray) $57.72 1
105 999-6766 Screw M6-1.0 x 30mm socket head stainless steel $1.32 2
106 192-1161 Handle $31.26 1
107 192-1170 Plate $10.17 1
108 192-1162 175amp charger housing with hole (gray) $60.56 1
109 192-1156 Screw M6 x 30mm socket head cap $4.84 2
110 192-2190 Bracket $106.96 1
111 292-0924 24V relay $111.95 1
112 192-0153 Screw M8 x 20mm hex head $2.22 4
114 192-1439 Trio board $1,170.50 1
115 192-3572 Fastener strip (sold by the inch) $0.90 9 in
116 192-0337 Screw M5 x 25mm socket head cap $3.00 2
117 192-2942 Control sensors $340.70 1
118 192-1109 Screw M6 x 10mm hex head $2.33 2
119 192-5929 Screw M4 x 8mm raised cheese head $2.22 2
120 991-2112 175amp charger plug with pins (gray) SB175 $16.09 1
122 192-1926 Negative battery clamp $10.88 1
123 192-9355 Screw M6 x 40mm hex head $5.00 1
124 192-0151 Nut M6 hex $2.22 1
125 192-0886 Battery post cover $12.10 1
126 192-1176 10amp fuse clip $5.73 1
127 192-7520 Wire harness pump $91.53 1
129 192-7082 Positive terminal post $24.49 1
130 192-2752 Jack charger tongue 175 amp/35 $20.31 2
140 192-9597 Adapter $44.58 1
143 192-7177 Trio configuration set $577.49 1
144 292-0925 Wire harness $260.03 1
145 192-0468 Screw M10 x 20 hex $4.28 1
146 192-0496 Washer M10 $2.22 1
147 292-8593 Wiring harness for trio board $226.40 1
148 192-7083 T-handle $50.46 1 (option)

Wiring Diagram - After 01.2004 - 192-0072
RefNbr Part Number Description Price Req Notes
292-0978 Wiring harness $0.00 1
292-0979 Wiring harness $0.00 1
292-0980 Wiring harness $0.00 1
292-0981 Wiring harness $0.00 1
292-0982 Wiring harness $0.00 1
292-0983 Wiring harness $0.00 1
292-0918 Wire harness $196.14 1
292-0237 Wiring harness $230.55 1
292-0343 175amp fuse $17.60 1
292-0917 Wire 2 AWG (red) $63.71 1
192-9553 Wiring harness (power board to J-fit option) $15.98 1
292-5604 Cable $69.66 1
292-0984 Wiring harness $0.00 1
292-0985 Wiring harness $0.00 1
292-5600 Connection cable $23.68 1
192-1203 Warning light and seat switch cable $16.10 1
292-5618 Cable $12.61 1
292-5605 Cable $2.22 1
292-5602 Wire $2.22 1
292-5603 Cable $17.65 1
292-5601 Wire $2.22 1
192-1174 2amp fuse clip $5.28 1
292-0986 Cable $0.00 1
292-8486 Sensor $221.51 1
292-8485 Sensor $222.89 1
192-9770 Sensor $228.50 1
292-0987 Wiring harness $0.00 1

Driver Seat Assembly - 192-0073
RefNbr Part Number Description Price Req Notes
1 192-4273 Hood $493.06 1
2 192-0627 Grommet $2.22 1
3 192-9150 Stopper $2.22 1
4 192-1187 Hinge $80.92 1
5 192-0705 Washer $2.22 2
6 192-0340 Nut M5 hex self locking $2.66 3
7 192-6383 Shackle $4.40 1
8 192-1193 Seat console $116.00 1
9 192-1184 Tension spring $14.12 2
11 192-6037 Retaining ring $2.22 4
12 292-8523 Buffer $7.84 2
13a 192-1191 Seat switch assembly $139.04 1 (includes 13b)
13b 192-2919 Disc $2.22 1
14 192-0973 3 1/4 inch cable tie $2.22 3
15 192-1183 Driver seat $459.21 1
16 999-1409 Screw M8-1.25 x 12mm socket head stainless steel $1.43 4
17 192-0347 Nut M8 hex $2.22 4
18 192-1928 Battery cover $162.57 1
19 192-0714 Cord (sold by the inch) $2.22 17 in
20 192-6156 Rubber plate $6.39 1
21 192-0912 Screw M4 x 16mm raised head $2.22 4
22 192-0149 Washer $2.22 4
23 192-5559 Plate $12.05 2
24 292-0977 Flashlight $513.33 1 (models 8004741 and 7525162)
25 192-3246 Swingo 2500 decal $8.28 1
N/S 192-1186 Axle $10.06 2
N/S 192-0057 6 pole female plug $2.22 1
N/S 192-1620 6 pole male plug $2.29 1
N/S 192-1203 Warning light and seat switch cable $16.10 1 (version 6)
N/S 192-1189 Snap hook $2.22 1 (version 6)
N/S 192-0348 Screw M8 x 12mm truss head $2.22 4 (version 6)
N/S 292-8524 Disc $4.55 1 (version 6)
N/S 192-2919 Disc $2.22 1 (version 6)

Warning Light and Accessories Assembly - 192-0074
RefNbr Part Number Description Price Req Notes
101 192-0039 Nut M4 hex $3.73 2
102 192-1195 Washer M4 $2.22 2
103 192-1196 Flashing light $264.62 1
104 192-1197 Support $58.56 1
105 192-1198 Grommet $2.22 1
106 192-1199 Bracket $55.17 1
107 192-0148 Screw M4 x 10mm raised cheese head $2.22 2
108 192-1066 Screw 40 x 12 $3.89 7
109 192-1200 P clamp $4.55 2
110 192-1201 Toggle switch $48.24 1
111 192-1202 Switch boot $24.26 1
112 192-1203 Warning light and seat switch cable $16.10 1 (4 wires that branch into two pairs)
113 192-2895 2 way connection block $2.22 1
114 192-0973 3 1/4 inch cable tie $2.22 2
120 292-5375 Filling hose with universal water coupling $55.06 1 (includes 121-123)
121 192-0205 Filling hose $2.66 1
122 192-0204 Hose clamp $5.33 1
123 192-0203 Hose (sold by the inch) $0.90 79 in
140 292-8525 Dirt container $74.71 1 (optional)

Recycling Assembly - 192-0075
RefNbr Part Number Description Price Req Notes
101 192-0400 Wire reinforced hose (sold by the inch) $0.90 26 in
102 192-0978 Hose clamp $3.22 3
103 192-1204 Male quick connect $43.13 1
104 192-1205 Female quick connect $93.91 1
105 192-0400 Wire reinforced hose (sold by the inch) $0.90 24 in
106 192-0957 Hose clamp $2.84 2
107 192-0959 Grommet $5.84 1
108 192-1206 Cover $32.41 1
109 192-1207 Pipe $10.55 1
110 192-0224 Packing ring $17.43 1
111 192-1209 Filter cage $136.04 1
112 192-0221 Pin $12.77 1
113 192-0220 O-ring $2.22 2
114 192-0222 10 inch outer filter sleeve $39.25 1

Steering Column Assembly - 192-0076
RefNbr Part Number Description Price Req Notes
1 192-1063 Bracket $246.60 1
2 192-1952 Bearing bushing $223.73 1
3 192-6043 Retaining ring 45 x 1-3/4 $4.44 1
4 192-1082 Grommet $2.22 1
5 192-1845 50 Gram balco glue tube $78.77 1
6 192-1219 Rope roller $21.09 1
7 192-1220 Chain sprocket $87.65 1
8 192-1215 Stop bolt $13.72 1
9 192-0079 Washer $2.22 3
10 192-0509 Screw M8 x 12mm hex head $2.29 1
11 192-9212 Screw M8 x 40/22mm hex $3.95 3
12 192-0485 Retaining ring $4.62 1
13 192-4854 Lubricator nipple $6.99 1
14 292-8526 Bearing disc $6.73 1
15 192-1077 Spacer disc $2.22 4
16 292-0965 Stand off $0.00 1
17 192-1073 Angled bracket $4.95 1
18 192-1044 Slide bearing $3.06 3
19 192-1070 Axle $61.12 1
20 192-1076 Extensible pin 5 x 24 $5.17 1
21 192-1075 Chain wheel $44.58 1
22 192-1003 Screw M5 x 35mm raised cheese head torx $2.22 1
23 192-1069 Cross joint $110.73 1
24 192-0835 Screw M8 x 35mm hex head $3.40 2
25 192-0510 Nut M8 self locking $2.22 2
26 192-0603 Screw hex $3.89 2
27 192-0153 Screw M8 x 20mm hex head $2.22 4
28 192-1053 Axle $82.92 1
29 192-1078 Washer $4.88 1
30 192-1049 Nut M12 self locking $3.33 1
31 192-1051 Steering wheel $227.95 1
32 192-1216 3/8 inch roller chain $11.32 1
33 192-1217 3/8 inch chain master link $2.22 1
34 192-1218 Directing rope $30.08 1
35 292-0410 Cover $8.88 1
36 192-1872 Grease $10.90 1
37 192-0078 Screw M8 x 16mm socket head $2.22 6
38 292-0966 Support $0.00 1
39 292-9099 Pedal set $407.64 1
40 192-0364 Screw M8 x 12mm socket head $2.29 2
41 292-0967 Sensor holder $0.00 1
42 192-0077 Screw M5 x 12mm socket head $2.22 2
43 292-8485 Sensor $222.89 1
44 192-0425 Screw M4 x 10mm socket head cap $2.22 2
45 192-0235 Nut M4 self locking $2.22 2
46 192-0003 Screw M3 x 10mm raised head $4.06 4
47 192-1068 Hood $330.49 1
48 192-1084 TASKI decal $3.22 1
49 292-0968 Holder $0.00 1
50 292-0969 Control board set $0.00 1
51 292-0970 Gasket $0.00 1
52 292-8535 Key switch assembly $56.70 1
53 292-5254 Steel key $3.44 1
54 192-8729 Actuator stop button $145.85 1
55 192-8721 Microswitch $25.44 2
56 192-0677 Washer M3 $2.22 2
57 192-6515 Horn $22.62 1
58 192-0547 Screw KA 40 x 14 $2.22 10
59 292-0971 Decal $0.00 1
60 192-0968 Screw KA 60 x 16 $4.00 4
N/S 192-0973 3 1/4 inch cable tie $2.22 1

Drainage Pump Assembly - 192-0077
RefNbr Part Number Description Price Req Notes
101 192-1222 Tool support $9.50 1
102 192-1571 Screw M50 x 16mm $2.22 4 (series 6)
103 192-1223 Protection (OBSOLETE) $4.17 1
104 192-0952 Noise condenser (OBSOLETE) $4.03 1
105 192-1224 4 way connection block $3.62 1
106 192-0203 Hose (sold by the inch) $0.90 126 in
107 192-0054 Screw M3 x 16mm raised cheese head $4.33 2
108 192-2803 Clamp (OBSOLETE) $2.22 2
109a 192-1066 Screw 40 x 12 $3.89 8 (before 01.2004)
109b 192-0625 Screw 50 x 25 for plastic $3.17 4 (after 01.2004)
110a 192-0149 Washer $2.22 4 (before 01.2004)
110b 192-0971 Washer $2.22 4 (after 01.2004)
111 192-0035 Screw M5 x 16mm socket head cap $2.22 2
112 192-1226 Bracket (OBSOLETE) $29.08 1
113 192-0204 Hose clamp $5.33 1
114 192-2732 Chain (sold by the inch) $13.16 6 in
115 192-1227 Nipple $43.51 1
116 192-1228 O-ring $2.22 2
117 192-1229 Tapped cap $32.70 1
118 192-1153 Toroidal choke $8.55 1
119 192-1230 Hose clamp $2.51 3
120 192-1232 Nipple $18.54 1
121 192-1233 L-connector $6.99 2
122 192-1234 Waste drainage pump $641.40 1
123 192-0203 Hose (sold by the inch) $0.90 6 in
124a 192-0053 Cable bushing $3.73 1 (series 1)
124b 192-2573 Cable strand (OBSOLETE) $237.16 1 (series 1)
124c 192-2490 Cable bushing $3.44 1 (series 2)
125 192-1235 Switch housing $17.98 1
126 192-1236 Adapter $16.87 1
127 192-1237 Switch $12.94 1
128 192-1238 Protection cap $34.85 1
129 192-1239 Impeller $97.01 1
130 192-1240 Screw M5 x 10mm raised cheese head $2.95 1
131 192-0227 O-ring 17.2 x 2.62mm $2.22 1
132 192-1241 Rising pipe $34.52 1
133 192-1242 Key ring 16 $2.22 1
134 192-0705 Washer $2.22 1
135 192-1243 S-hook $2.22 1
141 192-0205 Filling hose $2.66 1
142 192-0204 Hose clamp $5.33 1
143 192-2803 Clamp (OBSOLETE) $2.22 80 in
N/S 192-1246 Insulating tape $20.87 1
N/S 192-0102 7 3/4 inch cable tie $2.22 1 (series 6)
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $50.00 1 (series 6)
N/S 192-0218 12mm teflon tape $13.43 1 (series 6)

Wiring Diagram - Before 01.2004 -

RefNbr Part Number Description Price Req Notes

Pedal Assembly - 192-0186
RefNbr Part Number Description Price Req Notes
101 192-1087 Left/right brake cable $58.72 1
105 192-0278 Screw M8 x 25mm socket head $2.55 1
106 192-1088 Stop lever $21.38 1
107 192-1089 Slide bearing $2.22 2
108 192-1090 Retaining ring $2.22 1
110 192-1107 5k potentiometer $162.79 1
111 192-1092 Tension spring $4.33 1
112 192-1093 Tension spring $2.22 1
113 192-2405 Bushing $14.27 1
114 192-1095 Rope pulley $9.32 1
116 192-1044 Slide bearing $3.06 4
117 192-0807 Retaining ring $2.22 2
118 192-1096 Pedal pad $23.42 2
119 192-1097 Brake pedal $63.94 1
121 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.90 4
122 192-1098 Support (OBSOLETE) $93.80 1
127 192-0050 Screw M3 x 5mm hex set $2.22 1
128 192-0056 Gear $10.32 1
129 192-1101 Lever $11.66 1
131 192-0723 Screw M5 x 6mm $2.22 1
132 192-0091 Washer $4.06 1
133 192-1102 Accelerator pedal $48.13 1
135 192-6597 Spring $20.27 1
136 192-1103 Tension spring $3.55 1

Brush Lowering Assembly - 192-0187
RefNbr Part Number Description Price Req Notes
101 192-0822 Screw M8 x 25 hex head $3.00 2
102 192-2191 Bracket $26.20 1
103 192-1105 Screw M4 x 20mm socket head $2.22 2
104 192-0731 2 way connection block $6.66 2
106 192-1107 5k potentiometer $162.79 1
107 192-0050 Screw M3 x 5mm hex set $2.22 1
108 192-0056 Gear $10.32 1
109 192-1101 Lever $11.66 1
110 192-0075 Retaining ring $5.28 1
111 192-5689 Pressure spring $10.10 1
112 192-2106 Bolt with collar M8 $9.77 2
114 192-2062 Block $40.91 1
115 192-4792 Actuator $508.80 1
116 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.90 6
117 192-1115 Screw M12 x 14 hex head $2.22 4
118 192-1116 Chassis $483.58 1
119 192-0078 Screw M8 x 16mm socket head $2.22 4
120 192-2325 Buffer $51.68 2
121 192-1118 Strut $13.76 2
122 192-1119 Bolt $9.21 4
123 192-1120 Bracket $13.16 2
124 192-0075 Retaining ring $5.28 8
125 192-5531 Pivot $4.28 1
126 192-1122 Bracket $16.10 1
127 192-1881 Ball pivot $19.38 2
128 192-1123 Bracket $101.90 1
129 292-9853 Bolt $14.32 1
130 192-0347 Nut M8 hex $2.22 4
131 192-1125 Stop buffer $4.40 4
132 192-1306 Bushing $6.39 4
133 192-4617 Jack $52.50 1
136 192-0695 Ball pivot 10mm $8.99 2
137 192-0077 Screw M5 x 12mm socket head $2.22 5
139 192-1796 Axle $13.99 1
143 192-1131 Bracket $48.42 2
144 192-1132 Bracket $85.43 1
145 192-1133 Axle $13.43 1
146 192-1134 Rocker $45.02 1
148 192-0074 Slide bearing $2.22 6
149 192-1035 Slide bearing $2.22 4
150 192-8682 Nut M10 hex $2.22 1
N/S 192-0699 Safety clip $2.22 1
N/S 192-1136 Strong locking adhesive $229.50 1
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $50.00 1

Brush Drive Assembly - 192-0188
RefNbr Part Number Description Price Req Notes
101 192-0334 Hose clamp $2.22 1
102 192-9211 Angled hose nipple $6.73 1
103 192-0396 24V magnetic valve $166.50 1
104 192-1138 T-pipe $5.51 1
105 192-0404 Wire reinforced hose (sold by the inch) $0.90 37 in
106 192-0405 Connector $2.66 2
107 192-6485 Screw M5 x 8mm socket head cap $2.22 2
108 192-1140 Screw M4 x 8mm self tapping form $2.22 2
109 192-1141 Outlet tube $38.18 2
110 192-1142 Brush motor $681.87 1
111 192-1143 Carbon brush (pkg of 4) $110.07 1
113 192-0329 Bumper wheel $3.17 4
114 192-1145 Bushing $12.28 2
115 192-9210 Hose clamp $2.22 4
116a 192-1146 Brush housing $192.92 2 (2500)
116b 192-1155 Brush housing $267.35 2 (3500)
117 192-1147 Flanged bushing $8.39 2
118 192-1148 Pin with ring $2.51 1
119 192-1524 Screw M8 x 20mm flange socket head $2.22 6
120a 192-1149 Base plate $235.61 1 (2500)
120b 192-1154 Base plate $211.01 1 (3500)
121 192-1150 Square keyway $2.22 2
122 192-1151 Coupling wheel $94.68 2
123 192-1152 Retaining ring $4.51 2
124 192-0505 Coupling yoke $15.94 2
125 192-0157 Screw M6 x 16mm countersunk head cap $5.62 4
126 192-0504 Shaft $69.82 2
128 192-1153 Toroidal choke $8.55 2
129 192-0784 Slide bearing $2.22 4
130 192-1144 Screw M8 x 55mm socket head $5.62 6
131 192-5974 Reducing nipple 1/2 x 3/8 inch $12.96 1
132 192-0218 12mm teflon tape $13.43 1
133 192-1144 Screw M8 x 55mm socket head $5.62 2
134 192-0102 7 3/4 inch cable tie $2.22 1
135 192-0520 Collar with clamp $47.40 1

Brush Assembly - 192-0189
RefNbr Part Number Description Price Req Notes
101 192-0445 Screw M5 x 25mm pan head tap $2.22 6
102 192-0447 Clutch plate $37.03 1
106a 192-9439 14 inch hard nylon scrubbing brush (white) $207.79 1 (2500)
106b N/A Not available $0.00 1 (3500) (17 inch nylon scrubbing brush)
107a 192-9438 14 inch soft nylon scrubbing brush (white) $213.90 1 (2500)
107b 192-9442 17 inch soft nylon scrubbing brush (white) $148.03 1 (3500)
108a N/A Not available $0.00 1 (2500) (14 inch abrasive scrubbing brush)
108b 292-8672 17 inch abrasive scrubbing brush $345.56 1 (3500)
109a 192-9440 14 inch pad driver $197.58 1 (2500)
109b 192-9444 17 inch pad driver $170.94 1 (3500)

Drive Unit Assembly - 192-0370
RefNbr Part Number Description Price Req Notes
101 192-6474 Screw M10 x 30mm socket head cap $2.22 2
102b 192-8712 Washer 10/20 $0.00 4 (before 10.2002)
103 192-1082 Grommet $2.22 5
104 192-0835 Screw M8 x 35mm hex head $3.40 1
105a 192-0079 Washer $2.22 1 (after 07.2003)
105b 192-0604 Washer M8 $2.22 1 (before 07.2003)
106 192-6790 Stretching bracket $49.51 1
107 192-1938 Swing bearing $940.99 1
108 192-6747 Steering roller $363.15 1
109a 192-5921 Screw M4 x 12 raised cheese head $5.66 4 (after 07.2003)
109b 192-0148 Screw M4 x 10mm raised cheese head $2.22 4 (before 07.2003)
110 192-2231 Right hand bracket $6.55 1
111 192-2226 Left hand bracket $6.39 1
112 192-6203 Rubber shield $4.62 2
113 192-0289 Screw M6 x 10mm socket head $2.22 4
114 192-5559 Plate $12.05 2
115 192-4217 Screw M12 x 25mm hex $2.22 3
116 192-6340 Nut M4 self locking $2.22 2
117 192-7412 Washer 15/28 $2.73 2 (after 02.2002)
118 192-0603 Screw hex $3.89 6
119 192-1180 Spring washer $2.22 6
120a 192-1472 Right hand wheel $349.83 1
120b 192-9306 Right hand non-slip wheel (orange) $375.22 1
121a 192-1473 Left hand wheel $349.83 1
121b 192-9307 Left hand non-slip wheel $375.22 1
122 192-0383 Nut M5 hex $2.78 2
123 192-0705 Washer $2.22 2
124 192-5768 Protection hood $67.16 1
125 192-3700 Fixation (OBSOLETE) $11.15 2 (before 2024)
126 192-0102 7 3/4 inch cable tie $2.22 8 (before 2024)
127 192-5698 Protection cap $142.48 1
128 192-4854 Lubricator nipple $6.99 2
129 192-6748 Steering stop assembly $55.39 1
130 192-0264 Screw M10 x 20mm socket head cap $5.33 2
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $50.00 1
N/S 292-5102 Driving wheel without profile (red) $474.75 2 (optional - same for left and right)

Motor Gear Assembly - 192-0371
RefNbr Part Number Description Price Req Notes
101 192-4039 Gear with brakes $2,664.00 1
102 192-4535 Hub $332.60 2
103 192-2236 Brake $479.72 1
104 192-7542 Woodruff key 6 x 9 $2.22 2
105 192-5036 Motor $1,123.61 1
106 192-0476 Collar with clamp $47.40 1
107 192-0266 Carbon brush (pkg of 4) $113.40 1
108 192-4649 Key 5/5 x 14 $4.73 1
109 192-7130 Gear $296.59 1
110 192-0269 Washer $2.22 1
111 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.90 1
112 192-0496 Washer M10 $2.22 4
113 192-6474 Screw M10 x 30mm socket head cap $2.22 4
114 192-6479 Screw M5 x 16mm socket head $2.22 12
115 192-0282 O-ring $4.51 1
132 192-4536 Hub (OBSOLETE) $148.93 2 (before 03.2001)
133 192-0158 Screw M6 x 20mm socket head cap $2.29 8 (before 03.2001)
134 192-2235 Brake (OBSOLETE) $745.90 2 (before 03.2001)
135 192-2241 Brake lever (OBSOLETE) $59.85 1 (before 03.2001)
136 192-0275 Shaft seal 25 x 35 x 7 $9.99 2
140 292-0143 Angle bracket $3.44 1
141 999-6766 Screw M6-1.0 x 30mm socket head stainless steel $1.32 2
142 192-9786 Strap $2.84 1
143 192-0705 Washer $2.22 1
144 192-5921 Screw M4 x 12 raised cheese head $5.66 1
145 192-0235 Nut M4 self locking $2.22 1
146 292-8528 .5ml capsule loctite medium strength thread lock (red) $50.00 2
N/S 192-3734 Flange puller $201.13 1

Battery Assembly - 192-0372
RefNbr Part Number Description Price Req Notes
101 192-0912 Screw M4 x 16mm raised head $2.22 4
102 192-0149 Washer $2.22 4
103 192-1928 Battery cover $162.57 1
104 192-0714 Cord (sold by the inch) $2.22 10 in
106 192-5559 Plate $12.05 2
107 192-6156 Rubber plate $6.39 1
109 192-4273 Hood $493.06 1
110 192-5755 Protection $4.11 1
111 192-3818 Foot board $320.59 1
112a 192-3246 Swingo 2500 decal $8.28 1 (2500)
112b 192-3247 Swingo 3500 decal $62.74 1 (3500)
113 192-4674 Emergency switch off knob $22.76 1
114 192-5681 Pressure spring 10-1/2 x 42-29/32 $5.06 1
115 192-7424 Washer 8.4/20 $2.22 1
116 192-1888 Bar (OBSOLETE) $24.26 1
117 192-2779 Snap ring $4.06 1
118 192-0968 Screw KA 60 x 16 $4.00 4
119 192-5782 Right hand protection profile $372.16 1
120 192-5781 Left hand protection profile $372.16 1
121 192-3820 Right hand foot board $148.52 1 (3500)
122 192-3819 Left hand foot board $148.52 1 (3500)
123 192-1930 Battery housing $541.26 1
124 192-6767 Stopple $10.99 4
125 192-0278 Screw M8 x 25mm socket head $2.55 4
126 192-0289 Screw M6 x 10mm socket head $2.22 4
127 192-2188 Bracket $4.95 4
128 192-7097 Tie bar $64.38 1
129 192-7096 Tie bar $57.34 1
130 192-0079 Washer $2.22 4
131 192-2725 Centering screw $15.32 4
132 192-0078 Screw M8 x 16mm socket head $2.22 4
133 192-1090 Retaining ring $2.22 4
134 192-7412 Washer 15/28 $2.73 4
135 192-6165 Rubber disc 28 x 13-1/2 x 4 $2.22 4
136 192-2189 Bracket $4.40 2
137 192-0968 Screw KA 60 x 16 $4.00 4
138 192-3859 Front cover $461.56 1
144 192-7082 Positive terminal post $24.49 1 (old style)
145 192-7081 Negative terminal post (OBSOLETE) $13.43 1 (old style)
150 192-9356 Battery tray $53.97 1
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $50.00 1
N/S 192-5895 Quick adhesive F. plastic and gum $198.31 1

Control Board Assembly - 192-0447
RefNbr Part Number Description Price Req Notes
101 192-1058 Screw 35 x 10 for plastic $2.66 9
102 192-1062 Gasket $22.71 1
103 192-4663 Keyboard $231.10 1
105 192-1481 LCD display box $347.16 1
106 192-2412 Bushing $2.22 2
107 192-1633 Adapter print $262.96 1
108 192-0235 Nut M4 self locking $2.22 2
109 192-1085 Decal $2.22 1
110 192-0025 Key switch assembly $255.06 1
111 192-1064 Side cut key $59.83 1
112 192-1067 Switch bracket $25.75 1
113 192-6515 Horn $22.62 1
114 192-0941 Screw M40 x M10 for plastic $3.95 6
115 192-1065 Switch $94.75 1
121 192-1210 Bushing $14.10 1
122 192-1211 Bushing $10.77 1
123 192-1212 Deflection roller $63.78 2
124 192-0488 Ball bearing $4.00 2
125 192-0489 Retaining ring $3.66 2
126 192-1213 Washer $4.88 2
127 192-1214 Screw M8 x 45/28mm socket head cap $4.88 1
128 192-0603 Screw hex $3.89 1
129 192-1215 Stop bolt $13.72 1
130 192-1216 3/8 inch roller chain $11.32 1
131 192-1217 3/8 inch chain master link $2.22 1
132 192-0079 Washer $2.22 1
133 192-0509 Screw M8 x 12mm hex head $2.29 1
134 192-1218 Directing rope $30.08 1
135 192-1219 Rope roller $21.09 1
136 192-1220 Chain sprocket $87.65 1
140 192-1221 Anti-corrosive spray $183.44 1

- Know Your Machine -

RefNbr Part Number Description Price Req Notes

Squeegee Mechanism Support Assembly - 192-7104
RefNbr Part Number Description Price Req Notes
101 192-0111 Star knob $17.16 2 (2500)
102 192-8786 Support $32.41 1 (2500)
103 192-1044 Slide bearing $3.06 2 (2500)
104 192-0077 Screw M5 x 12mm socket head $2.22 1 (2500)
105 192-0880 Washer M5 $2.22 1 (2500)
106 192-1045 Holder $27.93 1 (2500)
107 192-8785 Bracket $84.09 1 (2500)
108 192-1872 Grease $10.90 1 (2500)
133 292-5113 Wave washer (OBSOLETE) $2.22 1 (3500)
134 192-8750 Cam disk $5.62 1 (3500)
143 192-1042 Support (OBSOLETE) $79.92 1 (3500)
145 192-1044 Slide bearing $3.06 2 (3500)
146 192-0807 Retaining ring $2.22 1 (3500)
147 192-1045 Holder $27.93 1 (3500)
148 192-0880 Washer M5 $2.22 1 (3500)
149 192-0077 Screw M5 x 12mm socket head $2.22 1 (3500)
150 192-1135 Nut M10 hex $2.22 1 (3500)
151 192-0079 Washer $2.22 3 (3500)
152 192-0243 Screw M8 x 20mm socket head $2.22 5 (3500)
153 192-1046 Squeegee mounting bracket $110.33 1 (3500)
154 192-1047 Caster wheel $47.80 1 (3500)

- Batteries, Brushes and Charger - Machines Sold Before 2016 - 192-8920
RefNbr Part Number Description Price Req Notes
01 162-0005 6V 305Ah wet battery (SNSR) $375.00 4
02 162-0046 6V 335Ah AGM battery (Group J305) $595.00 4
03 292-5106 24V 25amp AGM SCR battery charger with large SB175 gray plug $616.45 1 AGM Batteries
04 192-8783 24V 25amp wet SCR battery charger with large SB175 gray plug $616.45 1 WET Batteries
05 192-9445 17 inch progrit scrubbing brush (gray) (OBSOLETE) $440.24 2
07 192-9442 17 inch soft nylon scrubbing brush (white) $148.03 2
08 192-9444 17 inch pad driver $170.94 2
09 192-0447 Clutch plate $37.03 2
10 192-0445 Screw M5 x 25mm pan head tap $2.22 8 (for clutch plate)

- Simplified Recovery System -

RefNbr Part Number Description Price Req Notes

- Simplified Solution System -

RefNbr Part Number Description Price Req Notes

- Simplified Electrical System -

RefNbr Part Number Description Price Req Notes

Pump Assembly - 192-9609
RefNbr Part Number Description Price Req Notes
101 192-1452 Solution pump assembly $437.05 1 (includes 102-104a)
102 192-0336 O-ring $5.00 2
103 192-0335 Nipple with O-ring $10.99 1
104a 192-5860 Pump head $341.08 1 (EPDM)
104b 192-1385 Pump head assembly $263.36 1 (Viton, optional)
120 192-0334 Hose clamp $2.22 4
121 192-0955 Base plate $110.22 1
122 192-0400 Wire reinforced hose (sold by the inch) $0.90 8 in
123 192-0400 Wire reinforced hose (sold by the inch) $0.90 20 in
124 192-0400 Wire reinforced hose (sold by the inch) $0.90 10 in
125 192-0401 T-connector $5.44 1
126 192-0959 Grommet $5.84 1
127 192-0957 Hose clamp $2.84 1
128 192-0398 Male connector $5.66 1
129 192-3095 Cover $10.06 1
130 192-0978 Hose clamp $3.22 2
135 192-3890 Fuse holder $14.43 1
136 192-3892 Fuse clip $2.22 1
N/S 192-0400 Wire reinforced hose (sold by the inch) $0.90 29 in

- Batteries, Brushes and Charger - Machines Starting in 2016 - 192-9623
RefNbr Part Number Description Price Req Notes
162-0005 6V 305Ah wet battery (SNSR) $375.00 4
162-0046 6V 335Ah AGM battery (Group J305) $595.00 4
162-0019 6V 390Ah wet battery (SNSR) $475.00 4
162-0005 6V 305Ah wet battery (SNSR) $375.00 4
162-5132 24V 30amp smart battery charger with large SB175 gray plug $917.06 1
991-2112 175amp charger plug with pins (gray) SB175 $16.09 1
192-9439 14 inch hard nylon scrubbing brush (white) $207.79 1 (2500)
192-9438 14 inch soft nylon scrubbing brush (white) $213.90 1 (2500)
192-9445 17 inch progrit scrubbing brush (gray) (OBSOLETE) $440.24 2
192-9442 17 inch soft nylon scrubbing brush (white) $148.03 2 (3500)
292-8672 17 inch abrasive scrubbing brush $345.56 2 (3500)
192-9440 14 inch pad driver $197.58 1 (2500)
192-9444 17 inch pad driver $170.94 2
192-0447 Clutch plate $37.03 2
192-0445 Screw M5 x 25mm pan head tap $2.22 8 (for clutch plate)

- Pads - 16 inch - 255-1600
RefNbr Part Number Description Price Req Notes
01 255-1640 16 inch aqua plus burnishing pad (pkg of 5) $25.31
02 255-1635 16 inch Armadillo concrete scrubbing pad (pkg of 5) $36.15
03 255-1664 16 inch Blue ace pad (pkg of 5) $31.63
04 255-1642 16 inch Blue Jay burnishing pad (pkg of 5) $31.63
05 255-1612 16 inch Cure white pad (pkg of 5) $31.63
06 255-1677 16 inch Diamondback extreme stripping pad (pkg of 5) $45.33
07 255-1638 16 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 $171.63
08 255-1621 16 inch gorilla lite burnishing pad (pkg of 5) $31.63
09 255-1650 16 inch gorilla spray buff/polish/burnish pad (pkg of 5) $31.63
10 255-1665 16 inch Heat concrete bonding pad (pkg of 5) $92.46
11 255-1630 16 inch jaguar burnishing pad (pkg of 5) $25.31
12 255-1687 16 inch Melamine Mela-Kleen pad (pkg of 2) $130.66
13 255-1690 16 inch premium black stripping pad (pkg of 5) $31.63
14 255-1670 16 inch premium blue cleaning pad (pkg of 5) $31.63
15 255-1692 16 inch premium brown stripping pad (pkg of 5) $29.53
16 255-1680 16 inch premium green scrubbing pad (pkg of 5) $29.53
17 255-1660 16 inch premium red scrubbing pad (pkg of 5) $31.63
18 255-1652 16 inch premium tan polishing pad (pkg of 5) $31.63
19 255-1620 16 inch premium white polishing pad (pkg of 5) $29.53
20 255-1611 16 inch superspeed rubberized pad (pkg of 5) $31.63
21 255-1695 16 inch razorback stripping pad (pkg of 5) $38.45
22 255-1647 16 inch Redwood maroon floor prep pad (pkg of 10) $65.10
23 255-1655 16 inch Ruff non-abrasive brush pad (pkg of 2) $114.03
24 255-1623 16 inch sand screen driver pad (pkg of 2) $36.98
25 255-0132 16 inch Professional sand screen 100 grit (pkg of 10) $78.87
26 255-0133 16 inch Professional sand screen 120 grit (pkg of 10) $74.51
27 255-0134 16 inch Professional sand screen 150 grit (pkg of 10) $64.26
28 255-0135 16 inch Professional sand screen 180 grit (pkg of 10) $85.80
29 255-0136 16 inch Professional sand screen 220 grit (pkg of 10) $64.26
30 255-0137 16 inch Professional sand screen 400 grit (pkg of 10) $64.26
31 255-0130 16 inch Professional sand screen 60 grit (pkg of 10) $115.24
32 255-0131 16 inch Professional sand screen 80 grit (pkg of 10) $95.50
33 255-0217 16 inch Superscreen sand screen 100 grit (pkg of 10) $65.73
34 255-0218 16 inch Superscreen sand screen 120 grit (pkg of 10) $62.08
35 255-0219 16 inch Superscreen sand screen 150 grit (pkg of 10) $53.54
36 255-0220 16 inch Superscreen sand screen 180 grit (pkg of 10) $53.54
37 255-0221 16 inch Superscreen sand screen 220 grit (pkg of 10) $53.54
38 255-0222 16 inch Superscreen sand screen 400 grit (pkg of 10) $53.54
39 255-0215 16 inch Superscreen sand screen 60 grit (pkg of 10) $96.04
40 255-0216 16 inch Superscreen sand screen 80 grit (pkg of 10) $79.58
41 255-1624 16 inch Tiger carpet bonnet (pkg of 2) $67.75
42 255-9563 16 inch Diamond by Gorilla 11000 Grit (pkg of 2) $146.40
43 255-9560 16 inch Diamond by Gorilla 1500 Grit (pkg of 2) $146.40
44 255-9557 16 inch Diamond by Gorilla 200 Grit (pkg of 2) $146.40
45 255-9561 16 inch Diamond by Gorilla 3000 Grit (pkg of 2) $146.40
46 255-9558 16 inch Diamond by Gorilla 400 Grit (pkg of 2) $146.40
47 255-9559 16 inch Diamond by Gorilla 800 Grit (pkg of 2) $136.85
48 255-9562 16 inch Diamond by Gorilla 8000 Grit (pkg of 2) $146.43
49 255-9641 16 inch Diamond starter pack (1 of each grit) $275.03
50 255-1682 16 inch Turbostrip segmented rotary pad (pkg of 4) $50.63
51 255-1615 16 inch Duala clean and shine pad - low speed (pkg of 5) $122.55
52 255-1616 16 inch 2001 Duala clean and shine pad - high speed (pkg 5) $177.63

- Pads - 17 inch - 255-1700
RefNbr Part Number Description Price Req Notes
01 255-1740 17 inch aqua plus burnishing pad (pkg of 5) $27.86
02 255-1735 17 inch Armadillo concrete scrubbing pad (pkg of 5) $39.75
03 255-1764 17 inch Blue ace pad (pkg of 5) $34.80
04 255-1742 17 inch Blue Jay burnishing pad (pkg of 5) $34.80
05 255-1712 17 inch Cure white pad (pkg of 5) (OBSOLETE) $34.80
06 255-1777 17 inch Diamondback extreme stripping pad (pkg of 5) $49.85
07 255-1738 17 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 $163.73
08 255-1721 17 inch gorilla lite burnishing pad (pkg of 5) $34.80
09 255-1750 17 inch gorilla spray buff/polish/burnish pad (pkg of 5) $34.80
10 255-1765 17 inch Heat concrete bonding pad (pkg of 5) $101.72
11 255-1730 17 inch jaguar burnishing pad (pkg of 5) $27.86
12 255-1767 17 inch Laminated 2001 Gorilla polish pad (pkg of 5) $101.72
13 255-1768 17 inch Microclean daily cleaning pad (pkg of 2) $124.93
14 255-1769 17 inch Micropolish polishing and burnishing pad (pkg of 2) $155.95
15 255-1790 17 inch premium black stripping pad (pkg of 5) $34.80
16 255-1770 17 inch premium blue cleaning pad (pkg of 5) $34.80
17 255-1792 17 inch premium brown stripping pad (pkg of 5) $34.80
18 255-1780 17 inch premium green scrubbing pad (pkg of 5) $34.80
19 255-1760 17 inch premium red scrubbing pad (pkg of 5) $34.80
20 255-1752 17 inch premium tan polishing pad (pkg of 5) $34.80
21 255-1720 17 inch premium white polishing pad (pkg of 5) $34.80
22 255-1711 17 inch superspeed rubberized pad (pkg of 5) $27.86
23 255-1795 17 inch razorback stripping pad (pkg of 5) $45.33
24 255-1747 17 inch Redwood maroon floor prep pad (pkg of 10) $71.65
25 255-1755 17 inch Ruff non-abrasive brush pad (pkg of 2) $124.65
26 255-1723 17 inch sand screen driver pad (pkg of 2) $40.68
27 255-0139 17 inch Professional sand screen 100 grit (pkg of 10) $124.53
28 255-0019 17 inch Professional sand screen 120 grit (pkg of 10) $117.03
29 255-0140 17 inch Professional sand screen 150 grit (pkg of 10) $101.80
30 255-0141 17 inch Professional sand screen 180 grit (pkg of 10) $101.80
31 255-0142 17 inch Professional sand screen 220 grit (pkg of 10) $101.80
32 255-0143 17 inch Professional sand screen 400 grit (pkg of 10) $81.54
33 255-0138 17 inch Professional sand screen 60 grit (pkg of 10) $182.08
34 255-0018 17 inch Professional sand screen 80 grit (pkg of 10) $150.75
35 255-0225 17 inch Superscreen sand screen 100 grit (pkg of 10) $83.10
36 255-0226 17 inch Superscreen sand screen 120 grit (pkg of 10) $78.08
37 255-0227 17 inch Superscreen sand screen 150 grit (pkg of 10) $86.91
38 255-0228 17 inch Superscreen sand screen 180 grit (pkg of 10) $67.95
39 255-0229 17 inch Superscreen sand screen 220 grit (pkg of 10) $97.13
40 255-0230 17 inch Superscreen sand screen 400 grit (pkg of 10) $67.95
41 255-0223 17 inch Superscreen sand screen 60 grit (pkg of 10) $155.47
42 255-0224 17 inch Superscreen sand screen 80 grit (pkg of 10) $100.59
43 255-1724 17 inch Tiger carpet bonnet (pkg of 2) $76.00
44 255-9570 17 inch Diamond by Gorilla 11000 Grit (pkg of 2) $153.80
45 255-9567 17 inch Diamond by Gorilla 1500 Grit (pkg of 2) $153.80
46 255-9564 17 inch Diamond by Gorilla 200 Grit (pkg of 2) $163.73
47 255-9568 17 inch Diamond by Gorilla 3000 Grit (pkg of 2) $153.80
48 255-9565 17 inch Diamond by Gorilla 400 Grit (pkg of 2) $131.11
49 255-9566 17 inch Diamond by Gorilla 800 Grit (pkg of 2) $153.80
50 255-9569 17 inch Diamond by Gorilla 8000 Grit (pkg of 2) $153.80
51 255-9642 17 inch Diamond starter pack (1 of each grit) $287.02
52 255-1782 17 inch Turbostrip segmented rotary pad (pkg of 4) $53.85
53 255-1715 17 inch Duala clean and shine pad - low speed (pkg of 5) $133.70
54 255-1716 17 inch 2001 Duala clean and shine pad - high speed (pkg 5) $154.67

- Pad Holders - 275-9029
RefNbr Part Number Description Price Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red) $39.08
2a 991-2201 Center-Lok II pad holder - right hand thread (black) $39.08 (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer $23.04 (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) $42.60 (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring $32.00
4 991-2203 Big mouth pad holder male thread portion $37.74
5 991-2206 Center-Lok 3 pad holder $47.32 (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread) $42.60
7 N/A Not available $0.00
8 991-2209 Split retainer - pad holder ring (OBSOLETE) $29.10
9 N/A Not available $0.00 (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE) $25.17

- Manufacturer Recommended Stocking Parts - 392-9899
RefNbr Part Number Description Price Req Notes
192-0956 24V 3 stage vac motor $286.25 1
192-0979 Hose $24.71 1
192-0237 Threaded cap (red) $2.22 1
192-9214 Click spring $22.18 1
192-8746 Wheel 2.5 x 1 inch $96.08 3
192-9215 Axle $17.27 3
192-8747 Squeegee blade 39 inch front (clear) $88.78 1
192-9273 Squeegee blade 42 inch rear (clear) $99.90 1
192-1013 Squeegee blade 47 1/2 inch rear $134.71 1
192-1014 Squeegee blade 42 1/2 inch front $96.97 1
192-1064 Side cut key $59.83 1
192-0396 24V magnetic valve $166.50 1
192-3892 Fuse clip $2.22 1
Webpage Problem Reporting
